SKF QJ 1088 N2MA

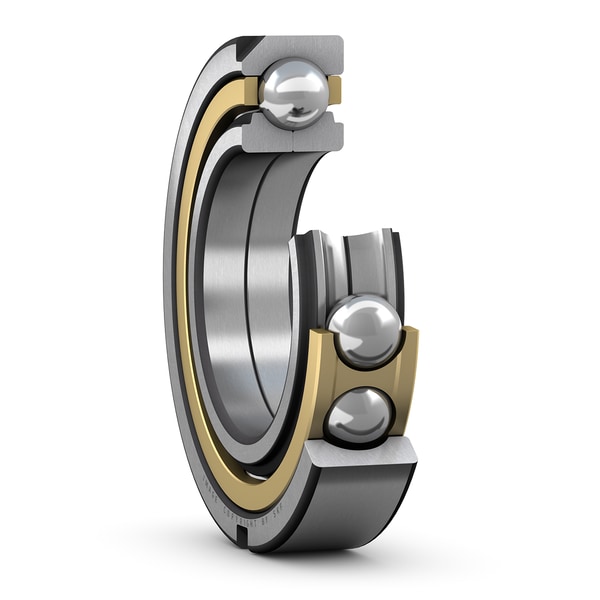

Four-point contact ball bearing with locating slots
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
440.0 mm
Bore diameter
D
650.0 mm
Outside diameter
B
94.0 mm
Width
d1
513.0 mm
Shoulder diameter inner ring
D1
577.0 mm
Shoulder diameter outer ring/ inner diameter housing washer
a
382.0 mm
Distance pressure point(s)
h
20.0 mm
Locating slot depth outer ring
b
15.5 mm
Locating slot width outer ring
r0
3.0 mm
Corner radius locating slot
r1,2
6.0 mm
Chamfer dimension inner ring
