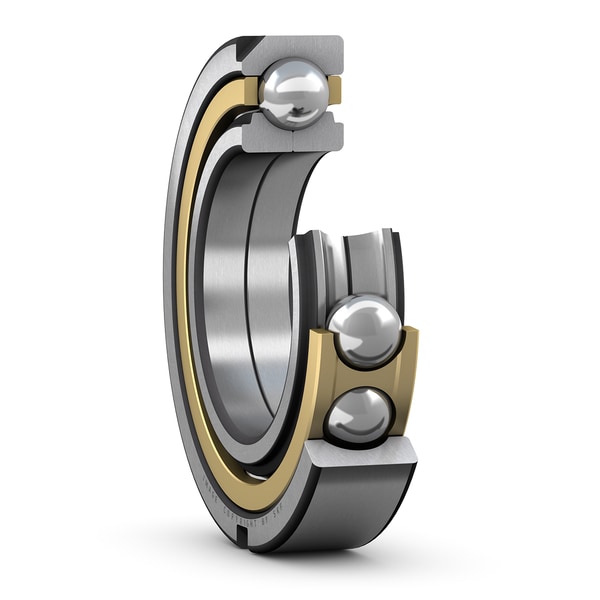

SKF QJ 1256 N2MA
Four-point contact ball bearing with locating slots
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
280.0 mm
Bore diameter
D
500.0 mm
Outside diameter
B
90.0 mm
Width
d1
365.0 mm
Shoulder diameter inner ring
D1
415.0 mm
Shoulder diameter outer ring/ inner diameter housing washer
a
390.0 mm
Distance pressure point(s)
h
15.0 mm
Locating slot depth outer ring
b
12.5 mm
Locating slot width outer ring
r0
2.5 mm
Corner radius locating slot
r1,2
5.0 mm
Chamfer dimension inner ring
