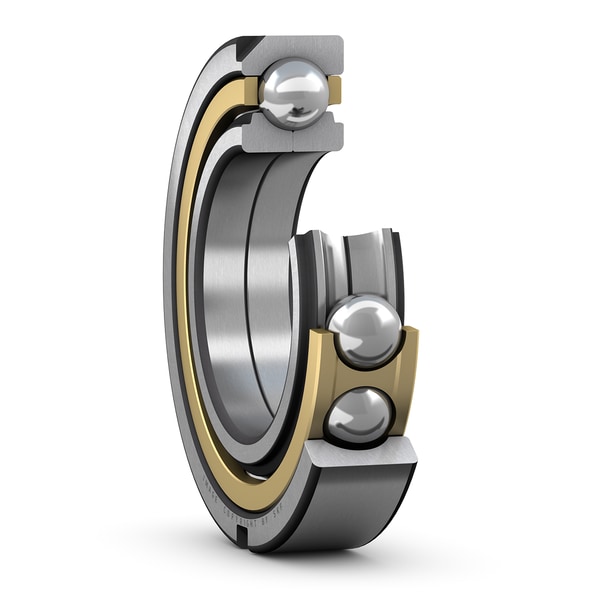

SKF QJ 1272 N2MA
Four-point contact ball bearing with locating slots
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
360.0 mm
Bore diameter
D
650.0 mm
Outside diameter
B
122.0 mm
Width
d1
472.0 mm
Shoulder diameter inner ring
D1
538.0 mm
Shoulder diameter outer ring/ inner diameter housing washer
a
505.0 mm
Distance pressure point(s)
h
25.0 mm
Locating slot depth outer ring
b
20.5 mm
Locating slot width outer ring
r0
3.0 mm
Corner radius locating slot
r1,2
6.0 mm
Chamfer dimension inner ring
