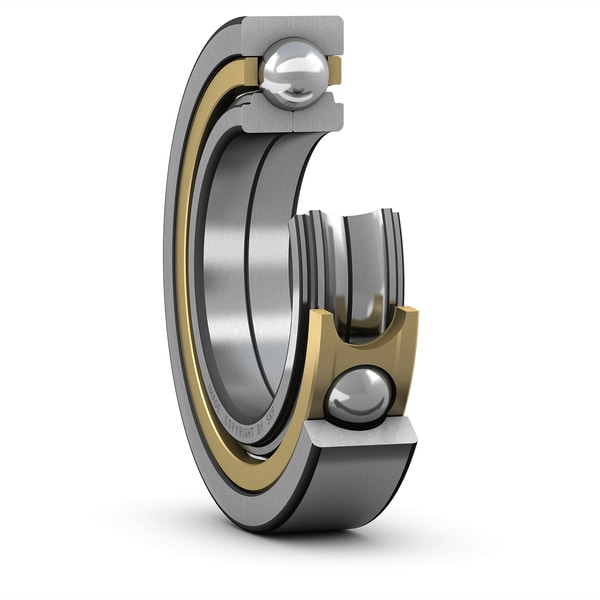

SKF QJ 206 MA
Four-point contact ball bearing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
30.0 mm
Bore diameter
D
62.0 mm
Outside diameter
B
16.0 mm
Width
d1
37.5 mm
Shoulder diameter inner ring
D1
50.8 mm
Shoulder diameter outer ring/ inner diameter housing washer
a
32.0 mm
Distance pressure point(s)
r1,2
1.0 mm
Chamfer dimension inner ring
mass
0.25 kg
Product net weight
