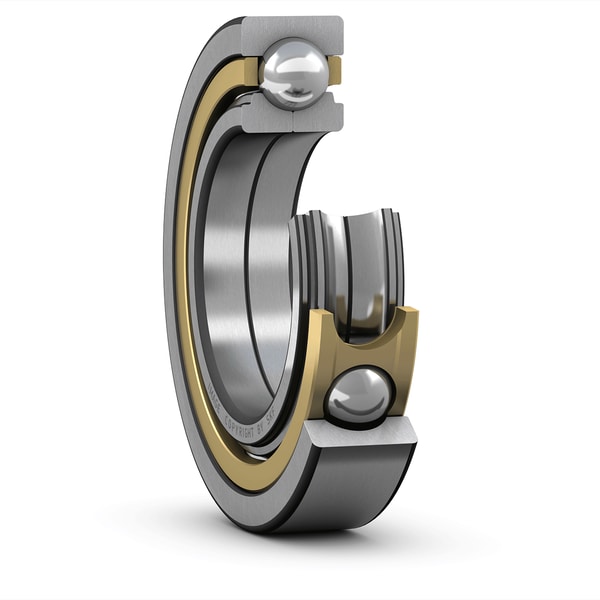

SKF QJ 209 MA
Four-point contact ball bearing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
45.0 mm
Bore diameter
D
85.0 mm
Outside diameter
B
19.0 mm
Width
d1
54.5 mm
Shoulder diameter inner ring
D1
72.0 mm
Shoulder diameter outer ring/ inner diameter housing washer
a
46.0 mm
Distance pressure point(s)
r1,2
1.1 mm
Chamfer dimension inner ring
mass
0.509 kg
Product net weight
