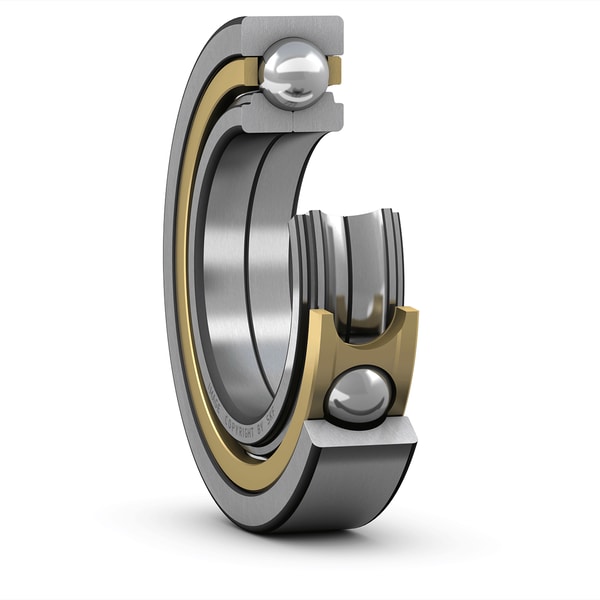

SKF QJ 213 MA
Four-point contact ball bearing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
65.0 mm
Bore diameter
D
120.0 mm
Outside diameter
B
23.0 mm
Width
d1
78.5 mm
Shoulder diameter inner ring
D1
101.0 mm
Shoulder diameter outer ring/ inner diameter housing washer
a
65.0 mm
Distance pressure point(s)
r1,2
1.5 mm
Chamfer dimension inner ring
mass
1.22 kg
Product net weight
