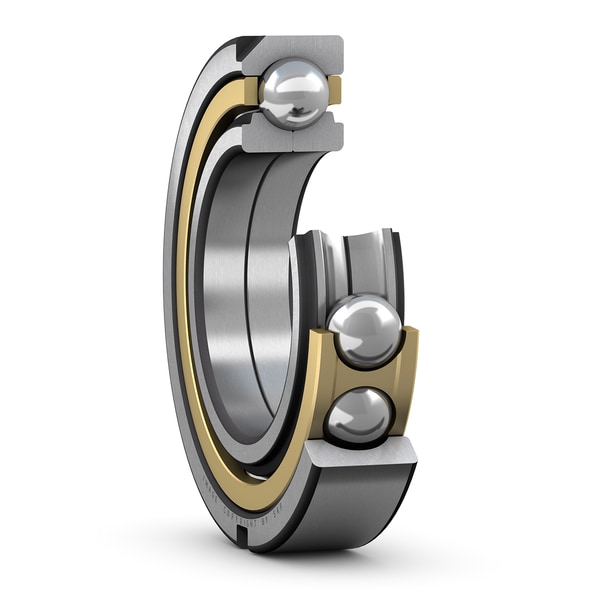

SKF QJ 314 N2MA
Four-point contact ball bearing with locating slots
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
70.0 mm
Bore diameter
D
150.0 mm
Outside diameter
B
35.0 mm
Width
d1
89.0 mm
Shoulder diameter inner ring
D1
123.0 mm
Shoulder diameter outer ring/ inner diameter housing washer
a
77.0 mm
Distance pressure point(s)
h
10.1 mm
Locating slot depth outer ring
b
8.5 mm
Locating slot width outer ring
r0
2.0 mm
Corner radius locating slot
r1,2
2.1 mm
Chamfer dimension inner ring
mass
3.27 kg
Product net weight
