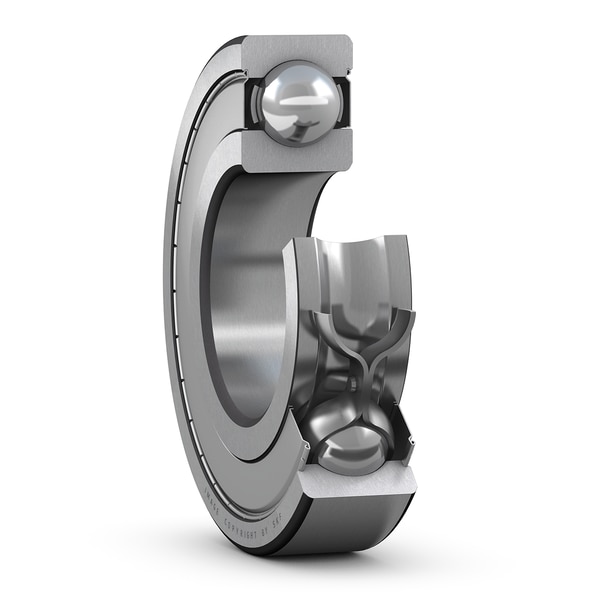

SKF W 6009-2Z
Stainless steel deep groove ball bearing with integral sealing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
45.0 mm
Bore diameter
D
75.0 mm
Outside diameter
B
16.0 mm
Width
d1
54.5 mm
Shoulder diameter
d2
54.5 mm
Recess diameter
D2
69.0 mm
Recess diameter
r1,2
1.0 mm
Chamfer dimension
mass
0.245 kg
Product net weight
