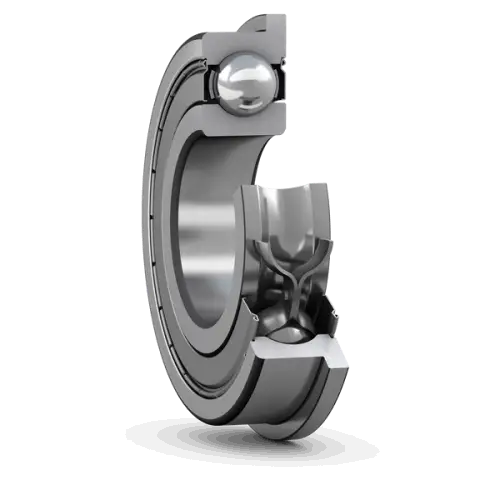

SKF W 627/5 R-2Z
Stainless steel deep groove ball bearing with flanged outer ring and integral sealing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
5.0 mm
Bore diameter
D
8.0 mm
Outside diameter
B
2.5 mm
Width
d1
5.8 mm
Shoulder diameter
D2
7.5 mm
Recess diameter
D3
9.2 mm
Flange diameter
C
0.6 mm
Flange width
r1,2
0.1 mm
Chamfer dimension
mass
0.0003 kg
Product net weight
