SKF W 627/6 R-2Z

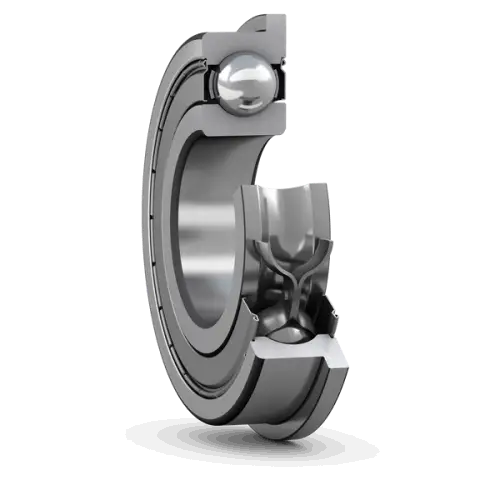

Stainless steel deep groove ball bearing with flanged outer ring and integral sealing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
6.0 mm
Bore diameter
D
10.0 mm
Outside diameter
B
3.0 mm
Width
d1
7.0 mm
Shoulder diameter
D2
9.31 mm
Recess diameter
D3
11.2 mm
Flange diameter
C
0.6 mm
Flange width
r1,2
0.1 mm
Chamfer dimension
mass
0.001 kg
Product net weight
