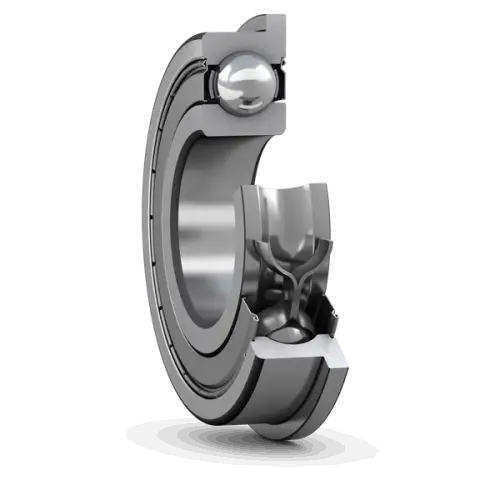

SKF W 628/6 R-2Z
Stainless steel deep groove ball bearing with flanged outer ring and integral sealing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
6.0 mm
Bore diameter
D
13.0 mm
Outside diameter
B
5.0 mm
Width
d2
7.4 mm
Recess diameter
D2
11.7 mm
Recess diameter
D3
15.0 mm
Flange diameter
C
1.1 mm
Flange width
r1,2
0.15 mm
Chamfer dimension
mass
0.003 kg
Product net weight
