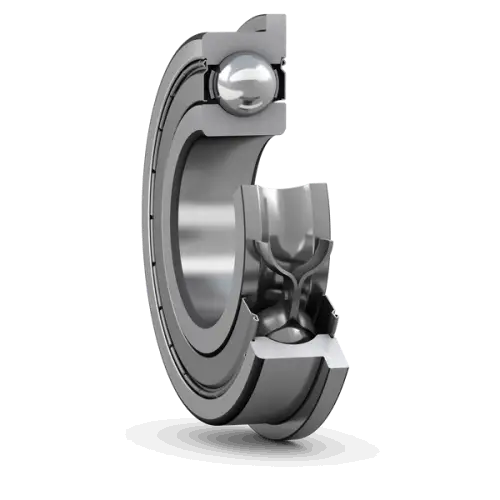

SKF W 637/8 R-2Z
Stainless steel deep groove ball bearing with flanged outer ring and integral sealing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
8.0 mm
Bore diameter
D
12.0 mm
Outside diameter
B
3.5 mm
Width
d1
9.0 mm
Shoulder diameter
D2
11.31 mm
Recess diameter
D3
13.6 mm
Flange diameter
C
0.8 mm
Flange width
r1,2
0.1 mm
Chamfer dimension
mass
0.001 kg
Product net weight
