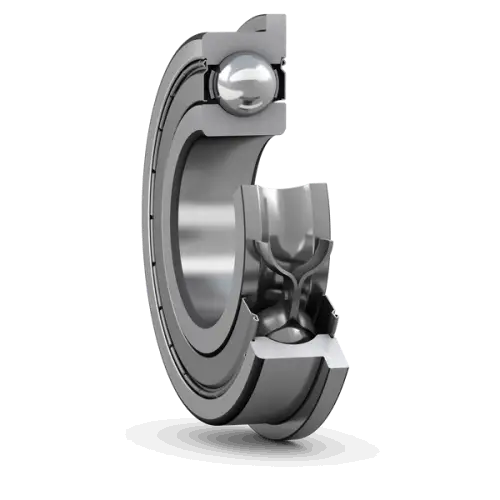

SKF W 638/4 R-2Z
Stainless steel deep groove ball bearing with flanged outer ring and integral sealing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
4.0 mm
Bore diameter
D
9.0 mm
Outside diameter
B
4.0 mm
Width
d1
5.2 mm
Shoulder diameter
D2
8.1 mm
Recess diameter
D3
10.3 mm
Flange diameter
C
1.0 mm
Flange width
r1,2
0.1 mm
Chamfer dimension
mass
0.001 kg
Product net weight
