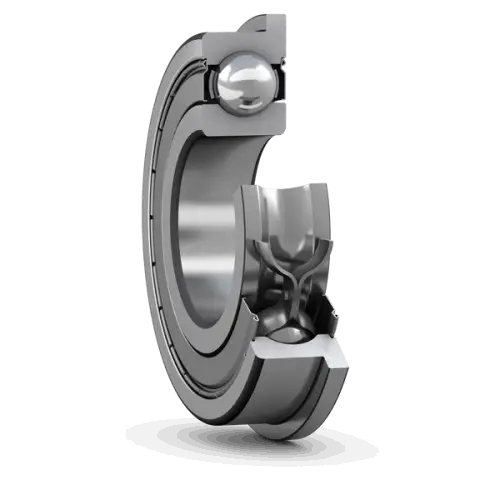

SKF W 63800 R-2Z
Stainless steel deep groove ball bearing with flanged outer ring and integral sealing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
10.0 mm
Bore diameter
D
19.0 mm
Outside diameter
B
7.0 mm
Width
d2
11.8 mm
Recess diameter
D2
17.15 mm
Recess diameter
D3
21.0 mm
Flange diameter
C
1.5 mm
Flange width
r1,2
0.3 mm
Chamfer dimension
mass
0.0075 kg
Product net weight
