SKF WBB1-8705-2Z

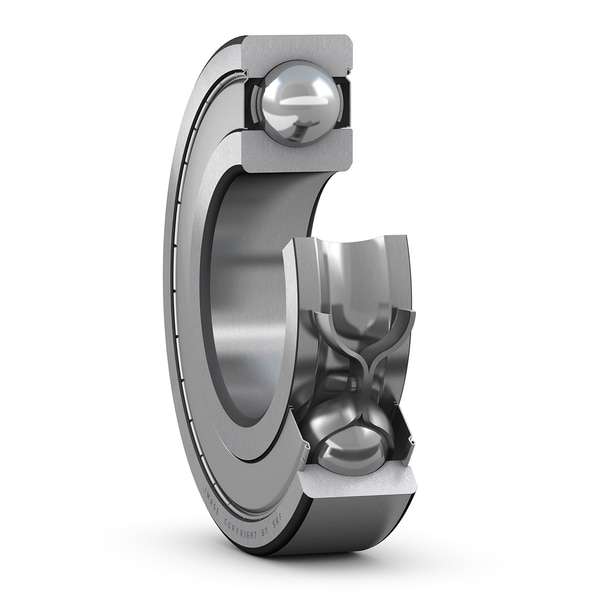

Stainless steel deep groove ball bearing with integral sealing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
5.0 mm
Bore diameter
D
10.0 mm
Outside diameter
B
4.0 mm
Width
d1
6.0 mm
Shoulder diameter
d2
6.0 mm
Recess diameter
D2
8.4 mm
Recess diameter
r1,2
0.15 mm
Chamfer dimension
mass
0.0012 kg
Product net weight
