Timken 124W

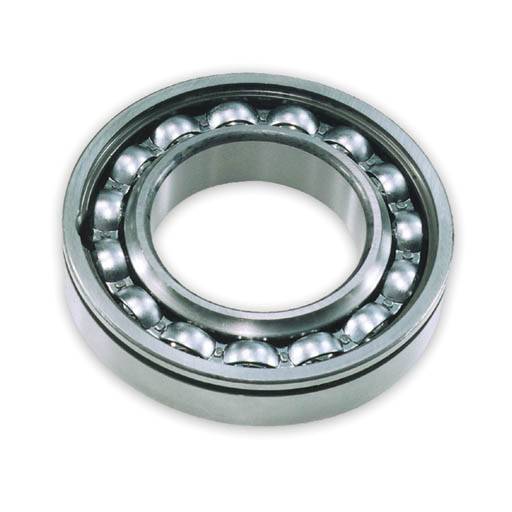

Fafnir® Maximum Capacity Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Design Units
Metric
d - Bore
120 mm
Ball Type
STEEL
Dimensions
D - Outer Diameter
190 mm
Bearing Width
32 mm
Basic Load Ratings
Ce - Dynamic Radial Rating1
139229 N
C0 - Static Radial Rating
125885 N
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius2
2.01 mm
r - Outer Ring "To Clear" Radius3
2.01 mm
da - Inner Ring Backing Diameter
132.08 mm
Da - Outer Ring Backing Diameter
176.28 mm
