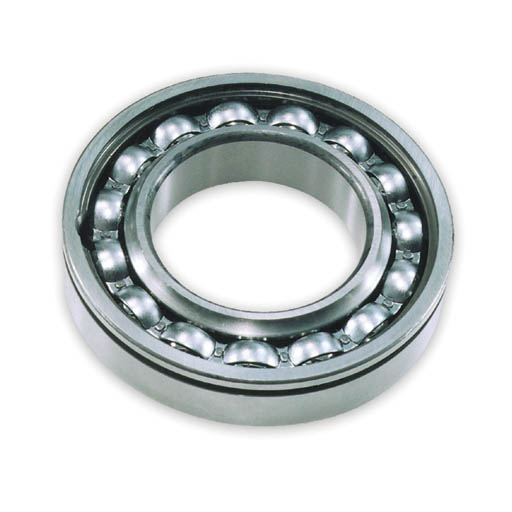

Timken 124WDBR
Fafnir® Maximum Capacity Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Design Units
Metric
d - Bore
120 mm
Ball Type
STEEL
Manufacturing Part Number
124WDBR
Dimensions
D - Outer Diameter
190 mm
Bearing Width
32 mm
Basic Load Ratings
Ce - Dynamic Radial Rating1
139300 N
C0 - Static Radial Rating
125700 N
Factors
Limiting Speed (Grease)
1613 rpm
Limiting Speed (Oil)
1935 rpm
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius2
2.01 mm
r - Outer Ring "To Clear" Radius3
2.01 mm
da - Inner Ring Backing Diameter
132.08 mm
Da - Outer Ring Backing Diameter
176.28 mm
