Timken 201PP

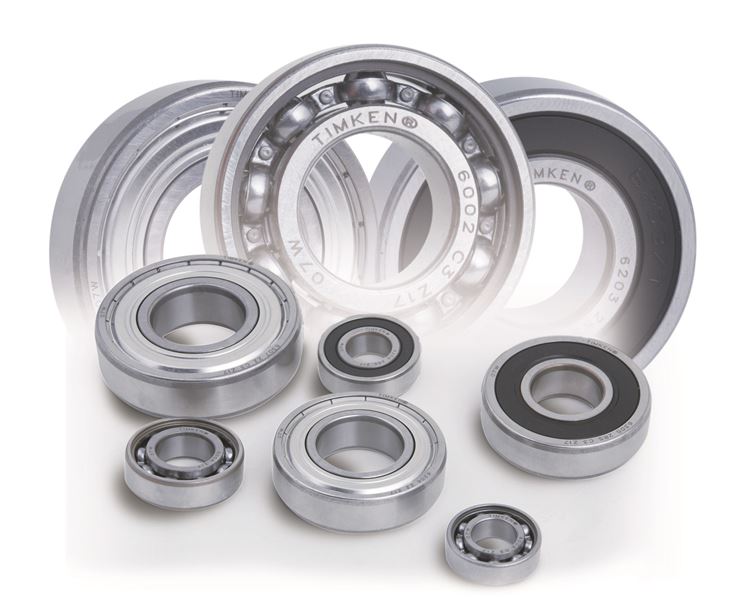

Fafnir® Deep Groove Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Design Units
Metric
d - Bore
12 mm
Ball Type
STEEL
Manufacturing Part Number
P201PP Z3 FS50000
Dimensions
D - Outer Diameter
32 mm
Bearing Width
10 mm
Basic Load Ratings
Ce - Dynamic Radial Rating1
7550 N
C0 - Static Radial Rating
3050 N
Factors
Limiting Speed (Grease)
13636 rpm
Limiting Speed (Oil)
15909 rpm
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius2
0.6 mm
r - Outer Ring "To Clear" Radius3
0.6 mm
da - Inner Ring Backing Diameter
14.73 mm
Da - Outer Ring Backing Diameter
26.92 mm
