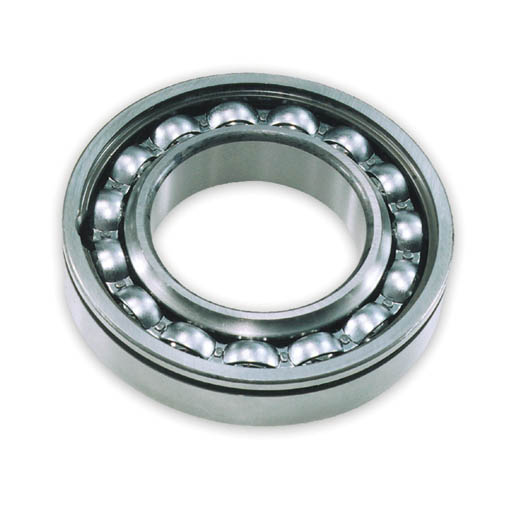

Timken 208W
Fafnir® Maximum Capacity Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Design Units
Metric
d - Bore
40 mm
Ball Type
STEEL
Manufacturing Part Number
208WC2
Dimensions
D - Outer Diameter
80 mm
Bearing Width
18 mm
Basic Load Ratings
Ce - Dynamic Radial Rating1
46200 N
C0 - Static Radial Rating
28700 N
Factors
Limiting Speed (Grease)
4167 rpm
Limiting Speed (Oil)
5000 rpm
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius2
1.1 mm
r - Outer Ring "To Clear" Radius3
1.1 mm
da - Inner Ring Backing Diameter
43.90 mm
Da - Outer Ring Backing Diameter
72.90 mm
