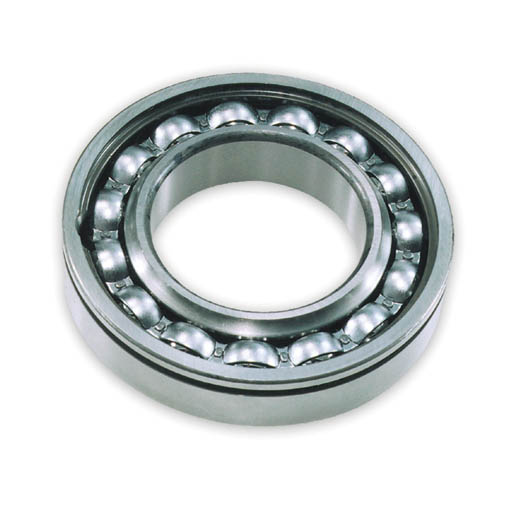

Timken 211WDD
Fafnir® Maximum Capacity Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Design Units
Metric
d - Bore
55 mm
Ball Type
STEEL
Dimensions
D - Outer Diameter
100 mm
Bearing Width
21 mm
Basic Load Ratings
Ce - Dynamic Radial Rating1
60200 N
C0 - Static Radial Rating
40900 N
Factors
Limiting Speed (Grease)
3226 rpm
Limiting Speed (Oil)
3871 rpm
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius2
1.5 mm
r - Outer Ring "To Clear" Radius3
1.5 mm
da - Inner Ring Backing Diameter
61.20 mm
Da - Outer Ring Backing Diameter
93.50 mm
