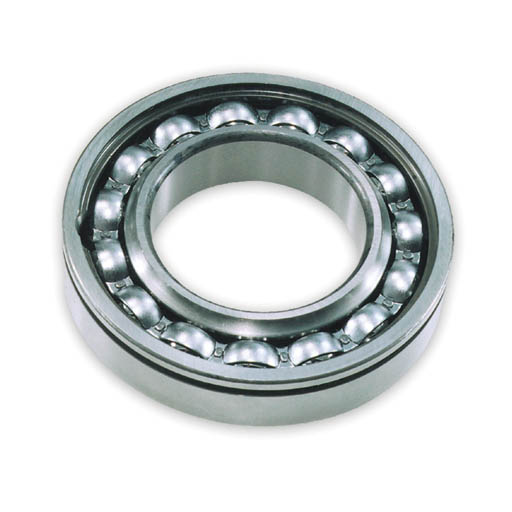

Timken 213W
Fafnir® Maximum Capacity Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Design Units
Metric
d - Bore
65 mm
Ball Type
STEEL
Dimensions
D - Outer Diameter
120 mm
Bearing Width
23 mm
Basic Load Ratings
Ce - Dynamic Radial Rating1
90744 N
C0 - Static Radial Rating
64944 N
Factors
Limiting Speed (Grease)
2700 rpm
Limiting Speed (Oil)
3240 rpm
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius2
1.5 mm
r - Outer Ring "To Clear" Radius3
1.5 mm
da - Inner Ring Backing Diameter
72.6 mm
Da - Outer Ring Backing Diameter
111.00 mm
