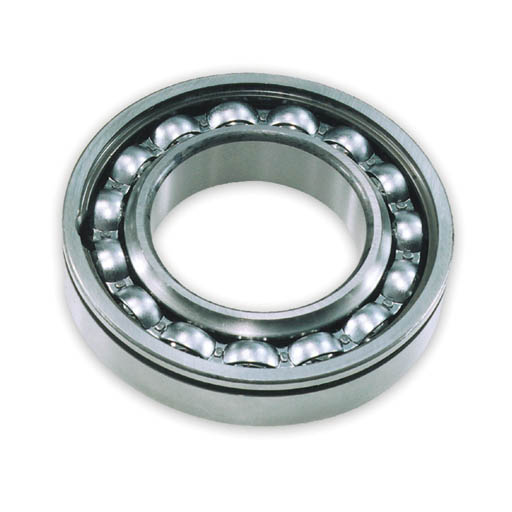

Timken 214WD
Fafnir® Maximum Capacity Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Design Units
Metric
d - Bore
70 mm
Ball Type
STEEL
Manufacturing Part Number
214WDC1
Dimensions
D - Outer Diameter
125 mm
Bearing Width
24 mm
Basic Load Ratings
Ce - Dynamic Radial Rating1
94400 N
C0 - Static Radial Rating
70400 N
Factors
Limiting Speed (Grease)
2564 rpm
Limiting Speed (Oil)
3077 rpm
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius2
1.5 mm
r - Outer Ring "To Clear" Radius3
1.5 mm
da - Inner Ring Backing Diameter
77.7 mm
Da - Outer Ring Backing Diameter
116.10 mm
