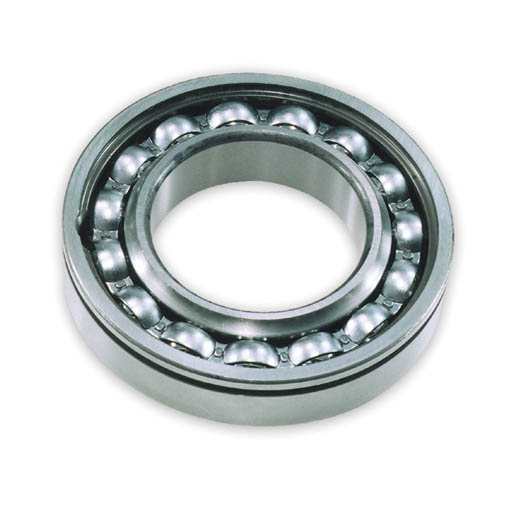

Timken 217WDDN
Fafnir® Maximum Capacity Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Design Units
Metric
d - Bore
85 mm
Ball Type
STEEL
Dimensions
D - Outer Diameter
150 mm
Bearing Width
28 mm
Basic Load Ratings
Ce - Dynamic Radial Rating1
127400 N
C0 - Static Radial Rating
99000 N
Factors
Limiting Speed (Grease)
2128 rpm
Limiting Speed (Oil)
2553 rpm
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius2
2 mm
r - Outer Ring "To Clear" Radius3
2 mm
da - Inner Ring Backing Diameter
95.20 mm
Da - Outer Ring Backing Diameter
140.0 mm
