Timken 22208EJW33C3

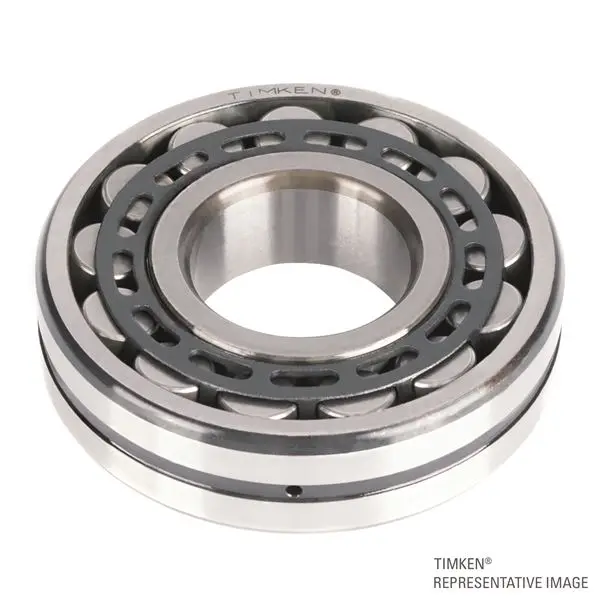

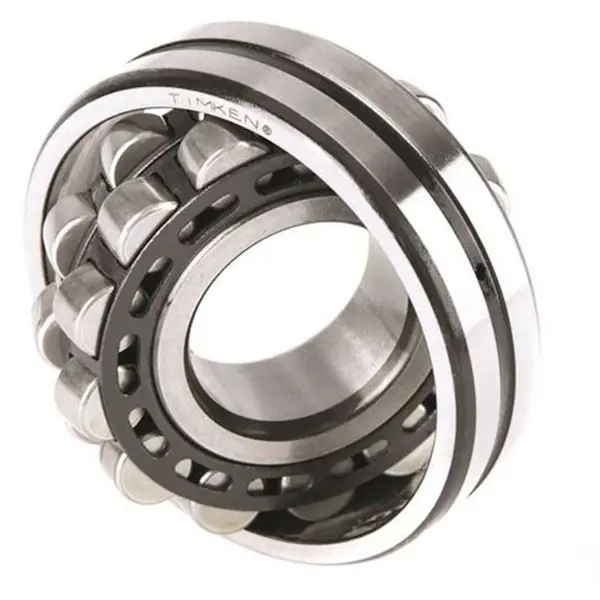

Spherical Roller Bearings - Steel Cage
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
UPC Code
087796022720
Design Unit
Metric
d - Bore
40 mm
Lubrication Type
Standard Grease
Cage Type
EJ
Cage Material
Steel
Superseded Part
22208CJW33C3
Factors
e - ISO Factor1
0.27
Y0 - ISO Factor2
2.41
Y1 - ISO Factor3
2.47
Y2 - ISO Factor4
3.67
Reference Thermal Speed Rating (Grease)
6000 rpm
Reference Thermal Speed Rating (Oil)5
7500 rpm
Cg - Geometry Factor6
0.0439
Dimensions
D - Outer Diameter
80 mm
B' - Inner Ring Width
23 mm
B - Outer Ring Width
23 mm
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius7
1 mm
r - Outer Ring "To Clear" Radius8
1 mm
da - Inner Ring Backing Diameter
50.000 mm
Da - Outer Ring Backing Diameter
73.0 mm
Basic Load Ratings
C0 - Static Radial Rating
104000 N
C1(2) - Dynamic Radial Rating (Two-Rows)
99700 N
