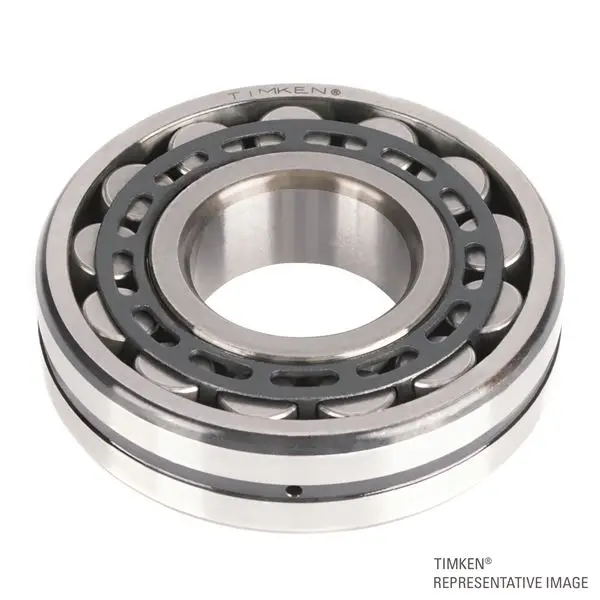

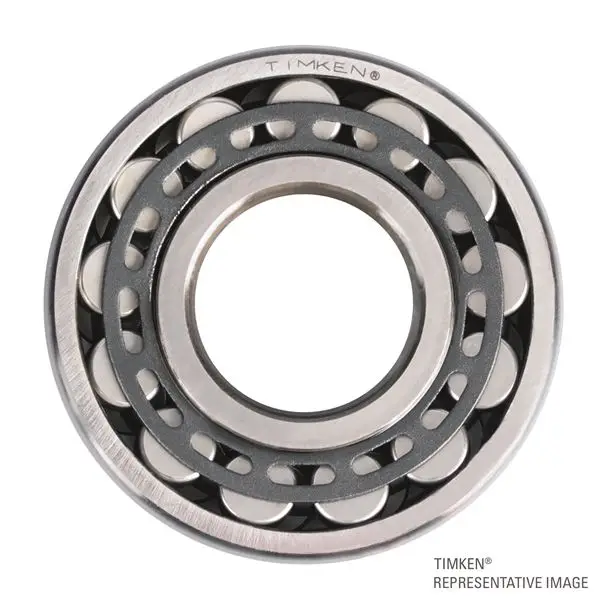

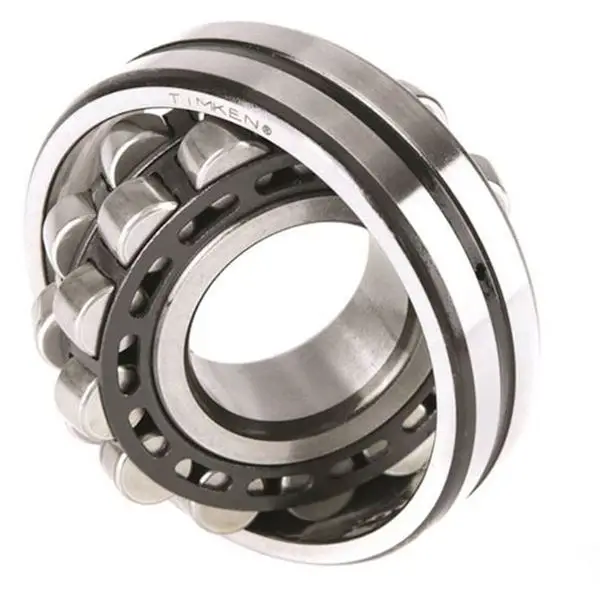

Timken 22211EJW33C2
Spherical Roller Bearings - Steel Cage
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
UPC Code
087796234611
Design Unit
Metric
d - Bore
55 mm
Lubrication Type
Standard Grease
Cage Type
EJ
Cage Material
Steel
Superseded Part
22211CJW33C2
Factors
e - ISO Factor1
0.23
Y0 - ISO Factor2
2.89
Y1 - ISO Factor3
2.95
Y2 - ISO Factor4
4.4
Reference Thermal Speed Rating (Grease)
4700 rpm
Reference Thermal Speed Rating (Oil)5
5800 rpm
Cg - Geometry Factor6
0.052
Dimensions
D - Outer Diameter
100 mm
B' - Inner Ring Width
25 mm
B - Outer Ring Width
25 mm
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius7
1.5 mm
r - Outer Ring "To Clear" Radius8
1.5 mm
da - Inner Ring Backing Diameter
66.000 mm
Da - Outer Ring Backing Diameter
91.000 mm
Basic Load Ratings
C0 - Static Radial Rating
142000 N
C1(2) - Dynamic Radial Rating (Two-Rows)
140000 N
