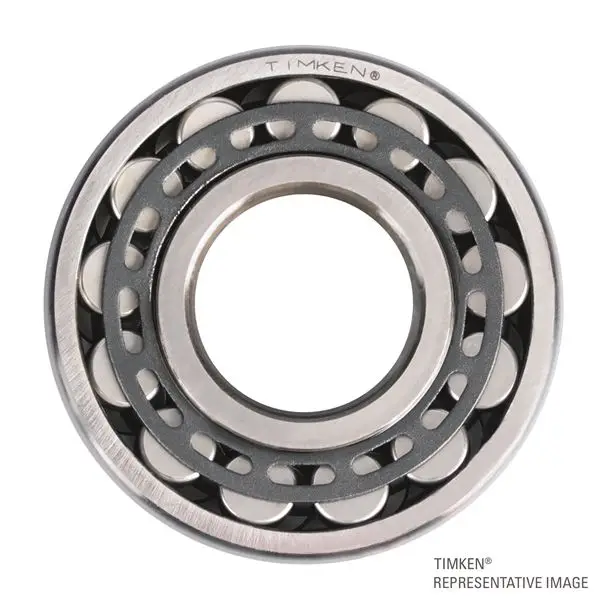

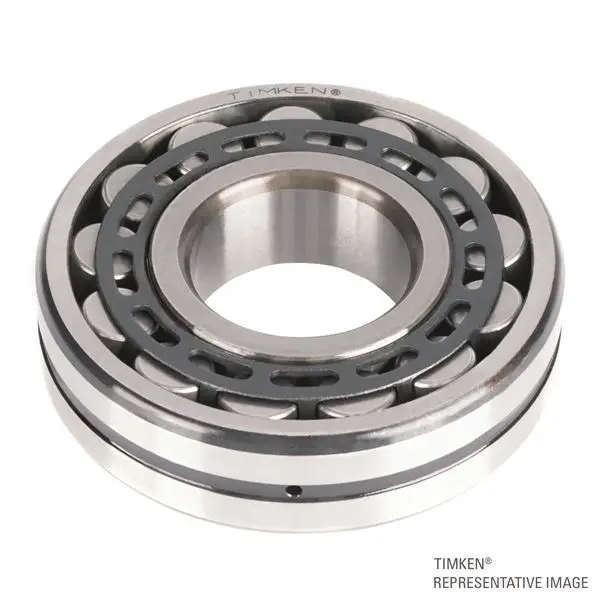

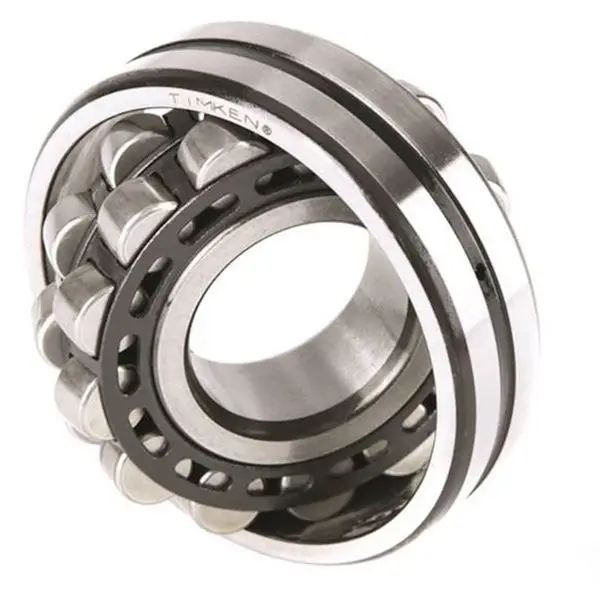

Timken 22215KEJW33
Spherical Roller Bearings - Steel Cage
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
UPC Code
087796023314
Design Unit
Metric
d - Bore
75 mm
Lubrication Type
Standard Grease
Bore_Taper
1/12
Cage Type
EJ
Cage Material
Steel
Superseded Part
22215KCJW33
Factors
e - ISO Factor1
0.22
Y0 - ISO Factor2
3.07
Y1 - ISO Factor3
3.14
Y2 - ISO Factor4
4.67
Reference Thermal Speed Rating (Grease)
3700 rpm
Reference Thermal Speed Rating (Oil)5
4600 rpm
Cg - Geometry Factor6
0.0547
Dimensions
D - Outer Diameter
130 mm
B' - Inner Ring Width
31 mm
B - Outer Ring Width
31 mm
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius7
1.5 mm
r - Outer Ring "To Clear" Radius8
1.5 mm
da - Inner Ring Backing Diameter
88.000 mm
Da - Outer Ring Backing Diameter
120.000 mm
Basic Load Ratings
C0 - Static Radial Rating
240000 N
C1(2) - Dynamic Radial Rating (Two-Rows)
222000 N
