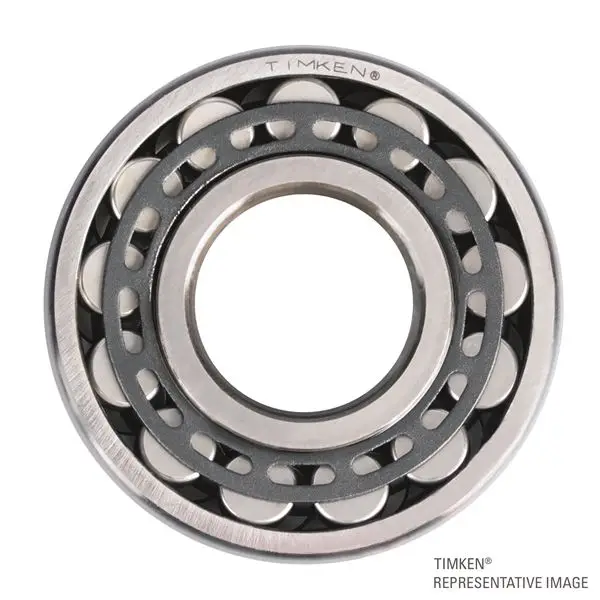

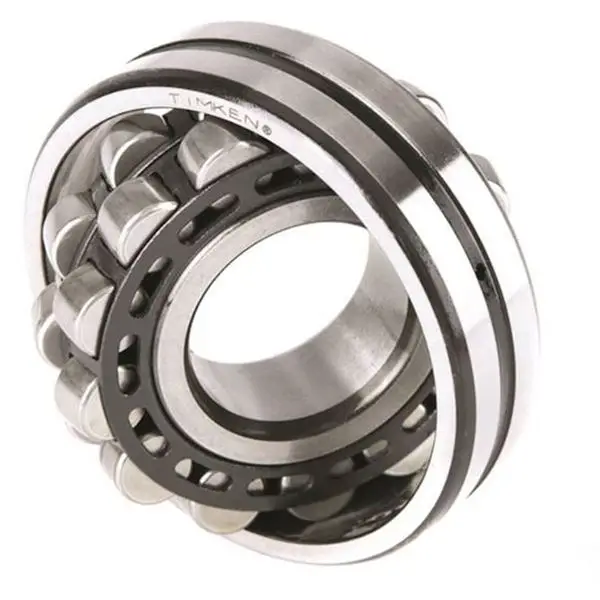

Timken 22308EJW33C4
Spherical Roller Bearings - Steel Cage
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
UPC Code
087796135628
Design Unit
Metric
d - Bore
40 mm
Lubrication Type
Standard Grease
Cage Type
EJ
Cage Material
Steel
Superseded Part
22308CJW33C4
Factors
e - ISO Factor1
0.36
Y0 - ISO Factor2
1.83
Y1 - ISO Factor3
1.87
Y2 - ISO Factor4
2.79
Reference Thermal Speed Rating (Grease)
5600 rpm
Reference Thermal Speed Rating (Oil)5
6700 rpm
Cg - Geometry Factor6
0.0458
Dimensions
D - Outer Diameter
90 mm
B' - Inner Ring Width
33 mm
B - Outer Ring Width
33 mm
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius7
1.5 mm
r - Outer Ring "To Clear" Radius8
1.5 mm
da - Inner Ring Backing Diameter
53.000 mm
Da - Outer Ring Backing Diameter
81.00 mm
Basic Load Ratings
C0 - Static Radial Rating
155000 N
C1(2) - Dynamic Radial Rating (Two-Rows)
147000 N
