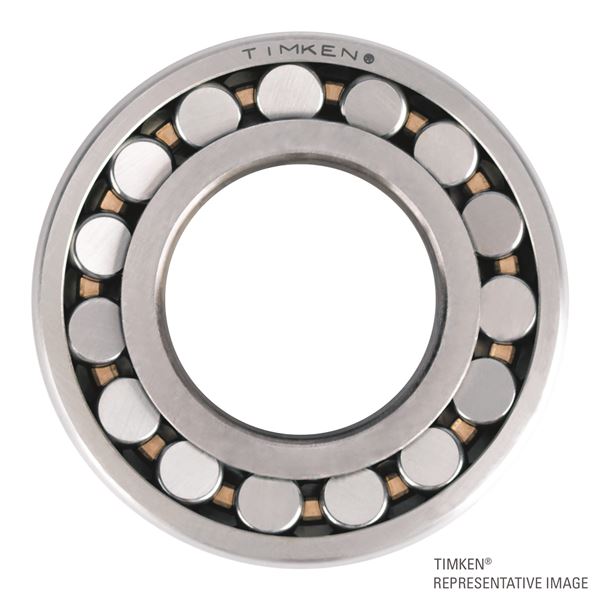

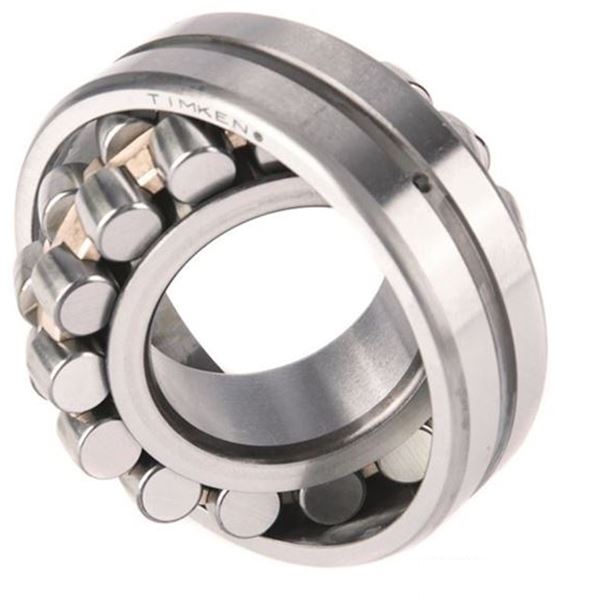

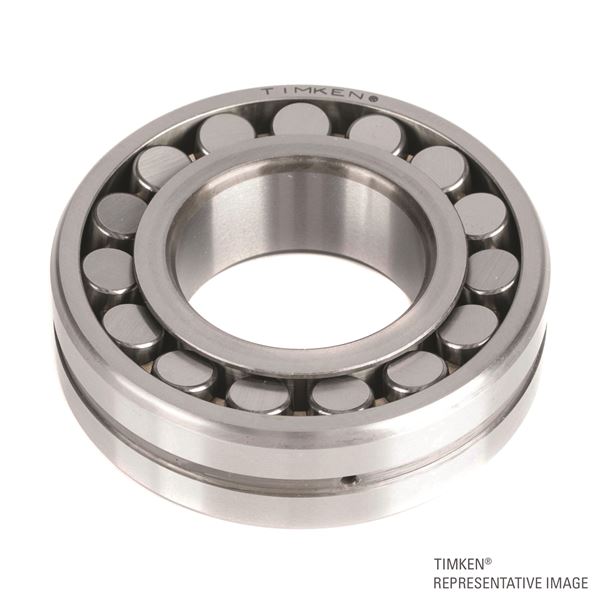

Timken 22309EMW33
Spherical Roller Bearings - Brass Cage
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Design Unit
Metric
d - Bore
45 mm
Cage Type
EM
Cage Material
Brass
Superseded Part
22309YMW33

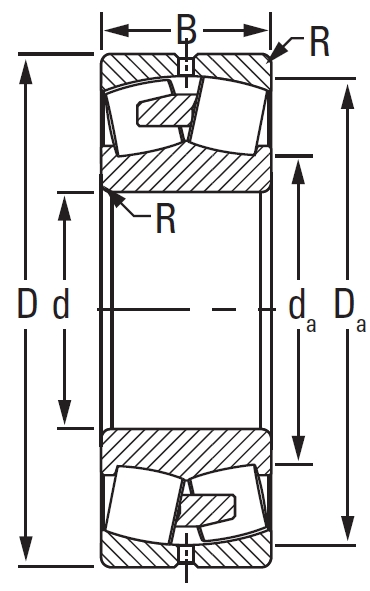

Dimensions
D - Outer Diameter
100 mm
B' - Inner Ring Width
36 mm
B - Outer Ring Width
36 mm
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius1
1.5 mm
r - Outer Ring "To Clear" Radius2
1.5 mm
da - Inner Ring Backing Diameter
58.000 mm
Da - Outer Ring Backing Diameter
90.000 mm
Basic Load Ratings
C0 - Static Radial Rating
180000 N
C1(2) - Dynamic Radial Rating (Two-Rows)
169000 N
Factors
e - ISO Factor3
0.36
Y0 - ISO Factor4
1.86
Y1 - ISO Factor5
1.9
Y2 - ISO Factor6
2.83
Reference Thermal Speed Rating (Grease)
5100 rpm
Reference Thermal Speed Rating (Oil)7
6100 rpm
Cg - Geometry Factor8
0.049
