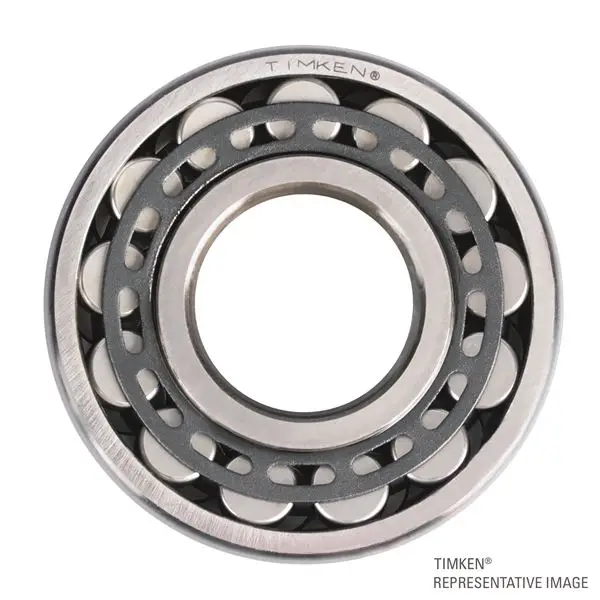

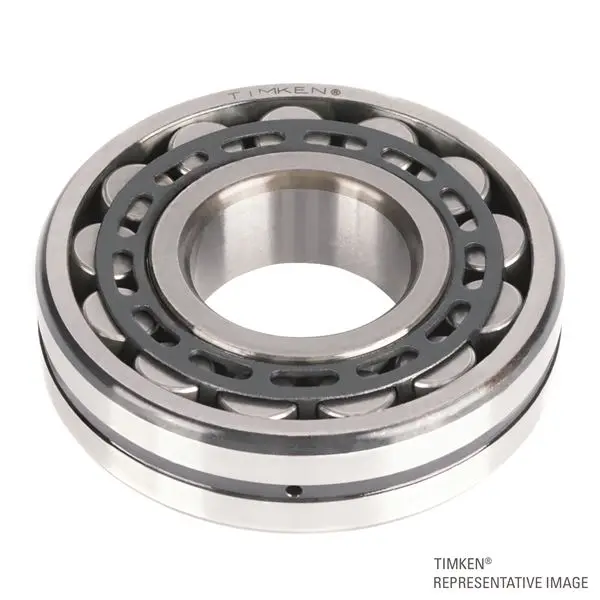

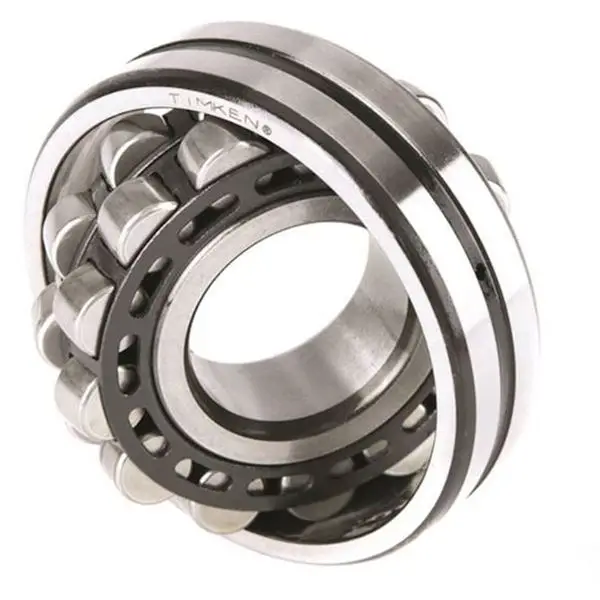

Timken 22312KEJW33
Spherical Roller Bearings - Steel Cage
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
UPC Code
087796023956
Design Unit
Metric
d - Bore
60 mm
Lubrication Type
Standard Grease
Bore_Taper
1/12
Cage Type
EJ
Cage Material
Steel
Superseded Part
22312KCJW33
Factors
e - ISO Factor1
0.34
Y0 - ISO Factor2
1.93
Y1 - ISO Factor3
1.98
Y2 - ISO Factor4
2.94
Reference Thermal Speed Rating (Grease)
4000 rpm
Reference Thermal Speed Rating (Oil)5
4700 rpm
Cg - Geometry Factor6
0.0532
Dimensions
D - Outer Diameter
130 mm
B' - Inner Ring Width
46 mm
B - Outer Ring Width
46 mm
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius7
2 mm
r - Outer Ring "To Clear" Radius8
2 mm
da - Inner Ring Backing Diameter
77 mm
Da - Outer Ring Backing Diameter
117 mm
Basic Load Ratings
C0 - Static Radial Rating
307000 N
C1(2) - Dynamic Radial Rating (Two-Rows)
306000 N
