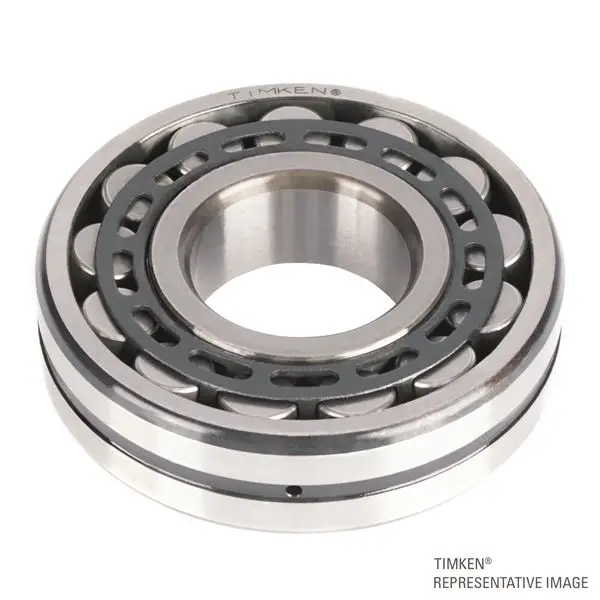

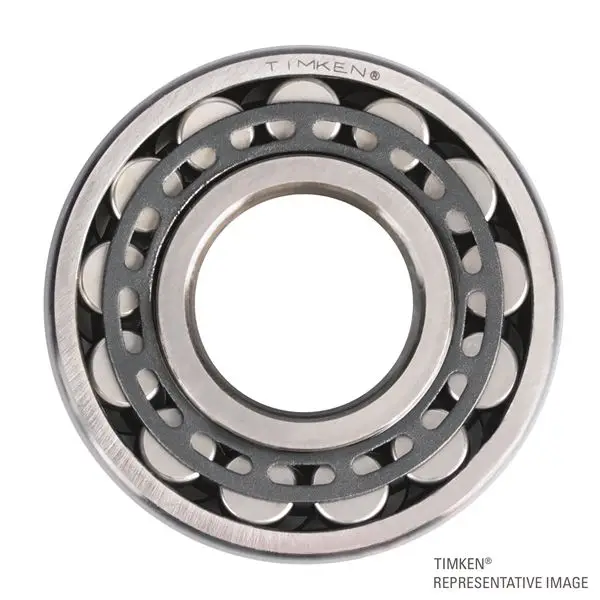

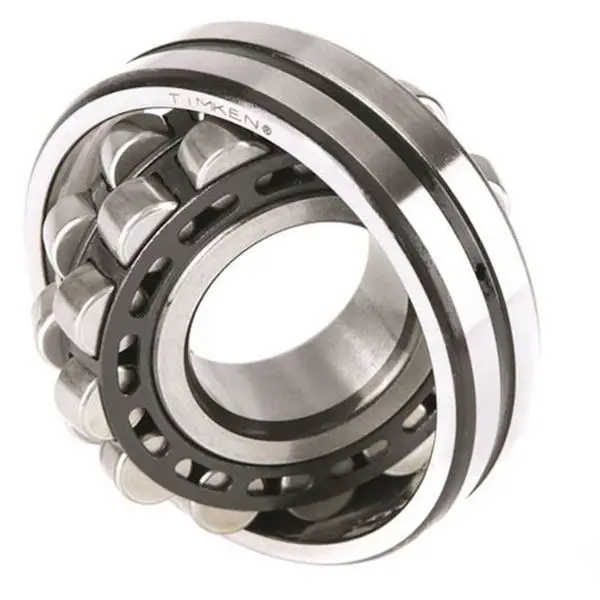

Timken 22313EJW33C4
Spherical Roller Bearings - Steel Cage
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
UPC Code
087796030978
Design Unit
Metric
d - Bore
65 mm
Lubrication Type
Standard Grease
Cage Type
EJ
Cage Material
Steel
Superseded Part
22313CJW33C4
Factors
e - ISO Factor1
0.33
Y0 - ISO Factor2
2
Y1 - ISO Factor3
2.05
Y2 - ISO Factor4
3.05
Reference Thermal Speed Rating (Grease)
3800 rpm
Reference Thermal Speed Rating (Oil)5
4400 rpm
Cg - Geometry Factor6
0.0558
Dimensions
D - Outer Diameter
140 mm
B' - Inner Ring Width
48 mm
B - Outer Ring Width
48 mm
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius7
2 mm
r - Outer Ring "To Clear" Radius8
2 mm
da - Inner Ring Backing Diameter
84 mm
Da - Outer Ring Backing Diameter
127 mm
Basic Load Ratings
C0 - Static Radial Rating
346000 N
C1(2) - Dynamic Radial Rating (Two-Rows)
344000 N
