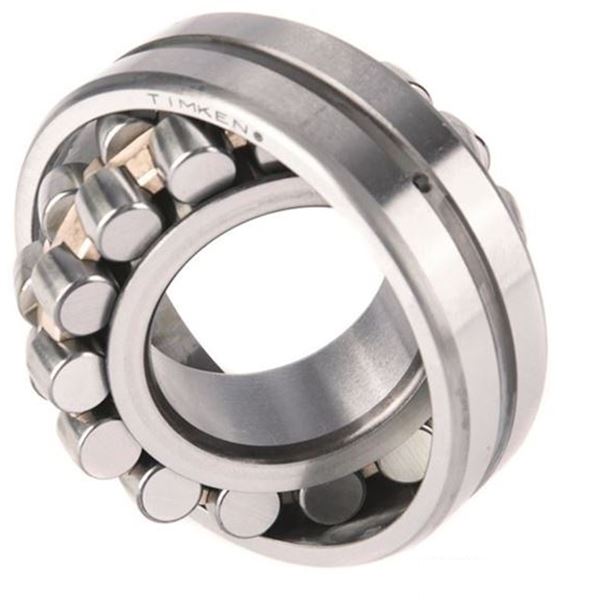

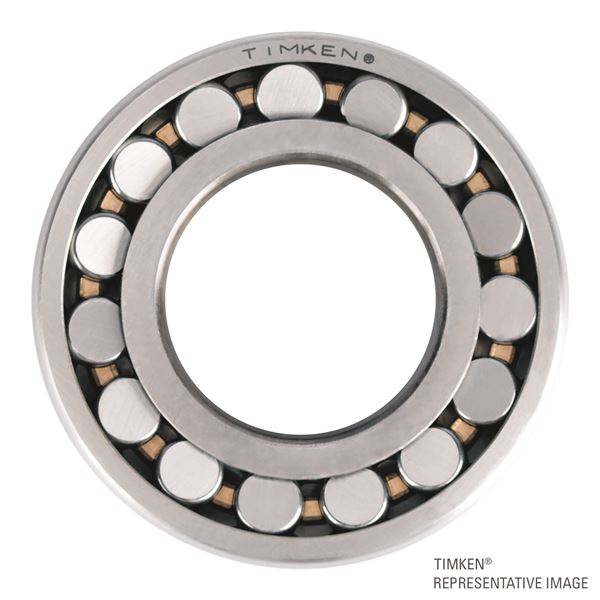

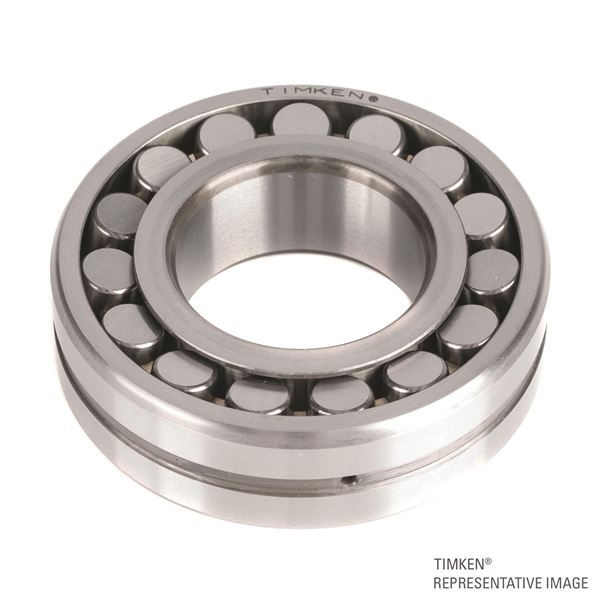

Timken 22324EMW33W800C3
Spherical Roller Bearings - Vibratory Applications (W800)
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Design Unit
Metric
d - Bore
120 mm
Cage Type
EM
UPC Code
087796138148
Cage Material
Brass
Superseded Part
22324YMW33W800C3

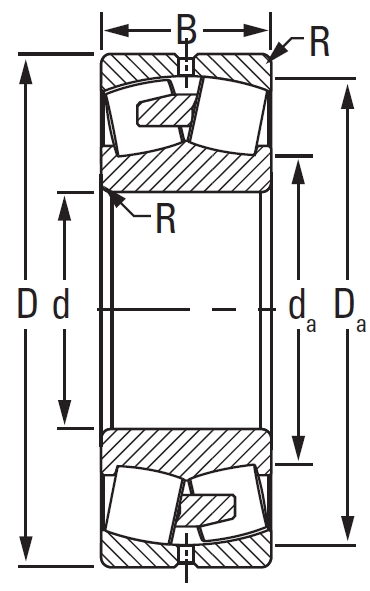

Dimensions
D - Outer Diameter
259.993 mm
B' - Inner Ring Width
86 mm
B - Outer Ring Width
86 mm
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius1
2.5 mm
r - Outer Ring "To Clear" Radius2
2.5 mm
da - Inner Ring Backing Diameter
157.000 mm
Da - Outer Ring Backing Diameter
234.000 mm
Basic Load Ratings
C0 - Static Radial Rating
1210000 N
C1(2) - Dynamic Radial Rating (Two-Rows)
1080000 N
Factors
e - ISO Factor3
0.32
Y0 - ISO Factor4
2.07
Y1 - ISO Factor5
2.11
Y2 - ISO Factor6
3.15
Reference Thermal Speed Rating (Grease)
1900 rpm
Reference Thermal Speed Rating (Oil)7
2200 rpm
Cg - Geometry Factor8
0.0834
