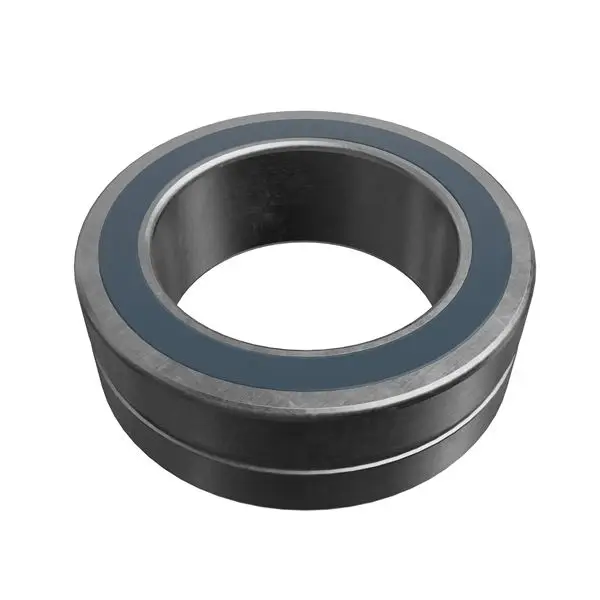

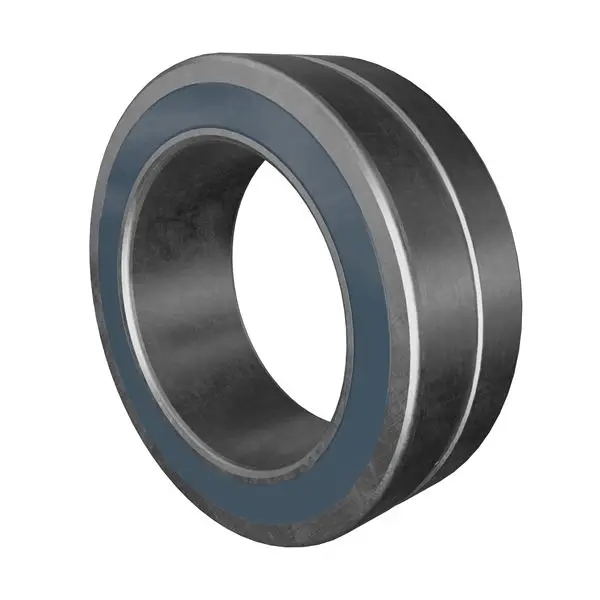

Timken 22330EJW33VSL609

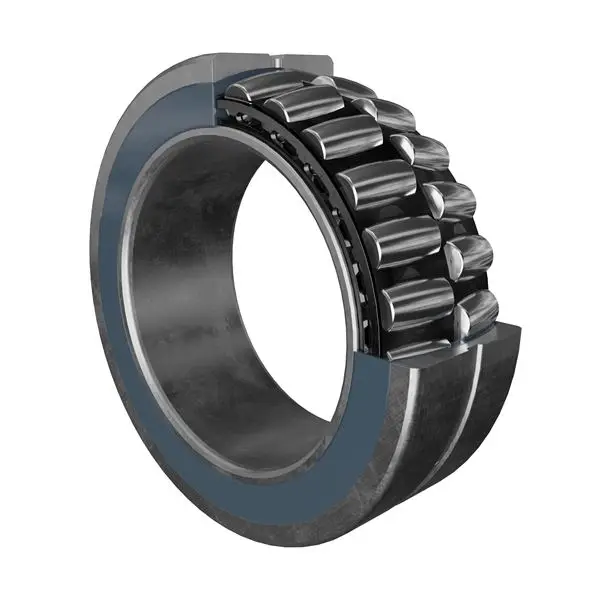

Spherical Roller Bearings - Solid Lube
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Design Unit
Metric
d - Bore
150 mm
Lubrication Type
Industrial Grade Solid Lube
Cage Type
EJ
Cage Material
Steel
Factors
Maximum Operating Speed
360 rpm
e - ISO Factor1
0.33
Y0 - ISO Factor2
2.03
Y1 - ISO Factor3
2.08
Y2 - ISO Factor4
3.09
Cg - Geometry Factor5
0.0884
Dimensions
D - Outer Diameter
320 mm
B' - Inner Ring Width
108 mm
B - Outer Ring Width
108 mm
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius6
3 mm
r - Outer Ring "To Clear" Radius7
3 mm
da - Inner Ring Backing Diameter
194 mm
Da - Outer Ring Backing Diameter
288 mm
Basic Load Ratings
C0 - Static Radial Rating
1890000 N
C1(2) - Dynamic Radial Rating (Two-Rows)
1620000 N
