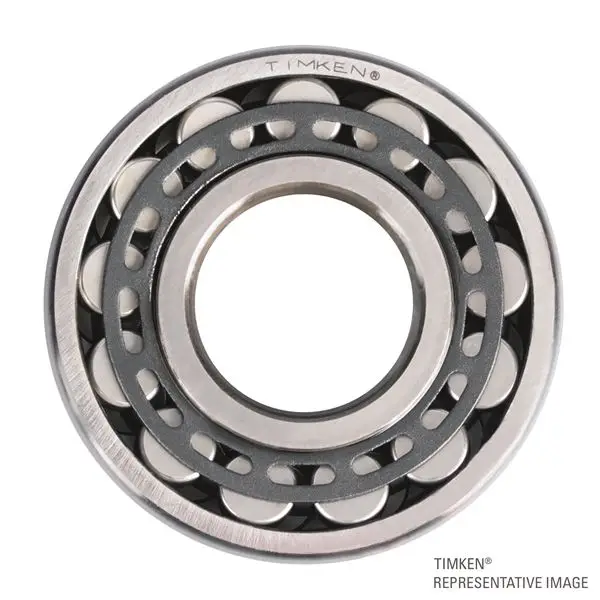

Timken 23064KEJW507C08C2
Spherical Roller Bearings - Steel Cage
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
UPC Code
087796177154
Design Unit
Metric
d - Bore
320.000 mm
Lubrication Type
Standard Grease
Bore_Taper
1/12
Cage Type
EJ
Cage Material
Steel
Superseded Part
23064KCJW507C08C2
Factors
e - ISO Factor1
0.23
Y0 - ISO Factor2
2.86
Y1 - ISO Factor3
2.93
Y2 - ISO Factor4
4.36
Reference Thermal Speed Rating (Grease)
880 rpm
Reference Thermal Speed Rating (Oil)5
1000 rpm
Cg - Geometry Factor6
0.1278
Dimensions
D - Outer Diameter
480 mm
B' - Inner Ring Width
121 mm
B - Outer Ring Width
121 mm
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius7
3 mm
r - Outer Ring "To Clear" Radius8
3 mm
da - Inner Ring Backing Diameter
355.000 mm
Da - Outer Ring Backing Diameter
444.000 mm
Basic Load Ratings
C0 - Static Radial Rating
3880000 N
C1(2) - Dynamic Radial Rating (Two-Rows)
2410000 N
