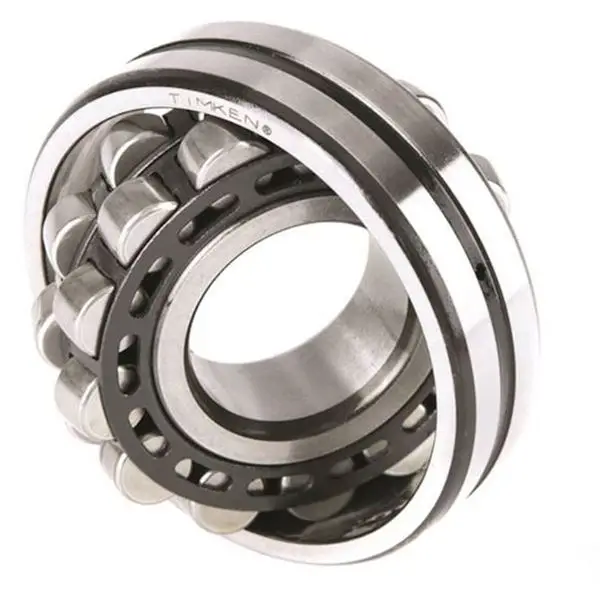

Timken 23168EJW507C08C3
Spherical Roller Bearings - Steel Cage
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
UPC Code
087796166875
Design Unit
Metric
d - Bore
340.000 mm
Lubrication Type
Standard Grease
Cage Type
EJ
Cage Material
Steel
Superseded Part
23168CJW507C08C3
Factors
e - ISO Factor1
0.3
Y0 - ISO Factor2
2.17
Y1 - ISO Factor3
2.22
Y2 - ISO Factor4
3.3
Reference Thermal Speed Rating (Grease)
570 rpm
Reference Thermal Speed Rating (Oil)5
630 rpm
Cg - Geometry Factor6
0.1383
Dimensions
D - Outer Diameter
580 mm
B' - Inner Ring Width
190 mm
B - Outer Ring Width
190 mm
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius7
4 mm
r - Outer Ring "To Clear" Radius8
4 mm
da - Inner Ring Backing Diameter
395.000 mm
Da - Outer Ring Backing Diameter
526.000 mm
Basic Load Ratings
C0 - Static Radial Rating
6850000 N
C1(2) - Dynamic Radial Rating (Two-Rows)
4500000 N
