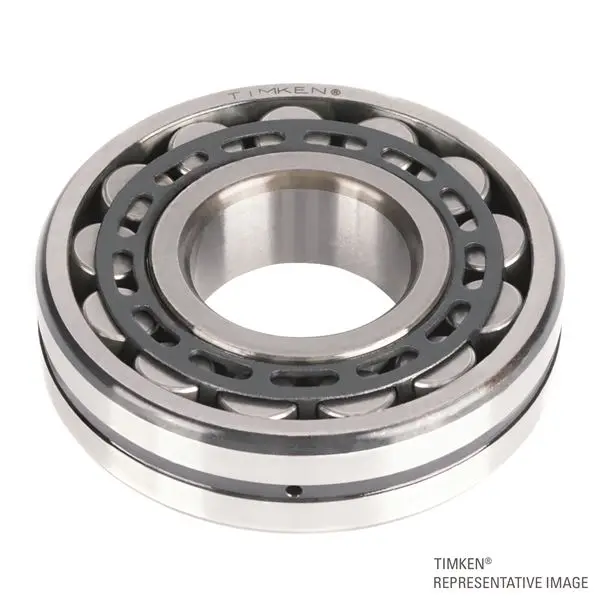

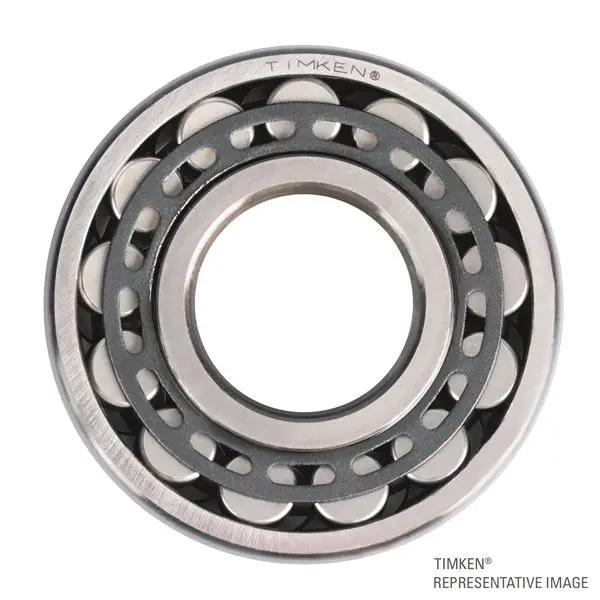

Timken 23172KEJW33W45A
Spherical Roller Bearings - Steel Cage
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
UPC Code
087796193635
Design Unit
Metric
d - Bore
360.000 mm
Lubrication Type
Standard Grease
Bore_Taper
1/12
Cage Type
EJ
Cage Material
Steel
Superseded Part
23172KCJW33W45A
Factors
e - ISO Factor1
0.29
Y0 - ISO Factor2
2.24
Y1 - ISO Factor3
2.29
Y2 - ISO Factor4
3.42
Reference Thermal Speed Rating (Grease)
530 rpm
Reference Thermal Speed Rating (Oil)5
590 rpm
Cg - Geometry Factor6
0.1427
Dimensions
D - Outer Diameter
600 mm
B' - Inner Ring Width
192 mm
B - Outer Ring Width
192 mm
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius7
4 mm
r - Outer Ring "To Clear" Radius8
4 mm
da - Inner Ring Backing Diameter
416 mm
Da - Outer Ring Backing Diameter
546.000 mm
Basic Load Ratings
C0 - Static Radial Rating
7300000 N
C1(2) - Dynamic Radial Rating (Two-Rows)
4660000 N
