Timken 23260KEJW906AC4

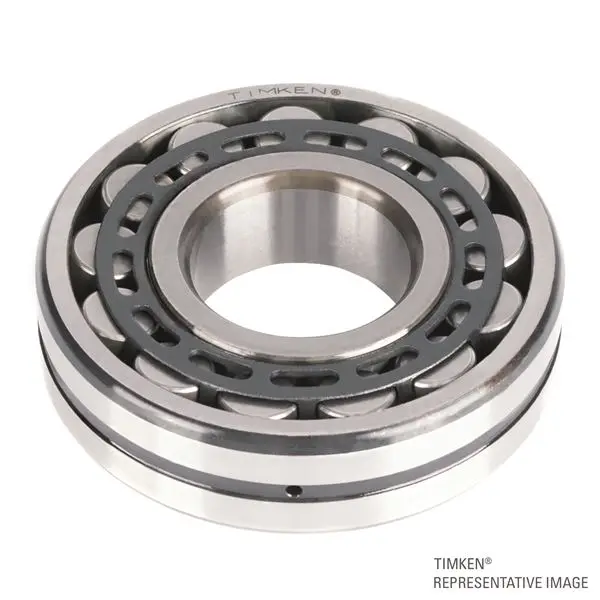

Spherical Roller Bearings - Steel Cage
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
UPC Code
087796165502
Design Unit
Metric
d - Bore
300 mm
Lubrication Type
Standard Grease
Bore_Taper
1/12
Cage Type
EJ
Cage Material
Steel
Superseded Part
23260KCJW906AC4
Factors
e - ISO Factor1
0.34
Y0 - ISO Factor2
1.96
Y1 - ISO Factor3
2
Y2 - ISO Factor4
2.98
Reference Thermal Speed Rating (Grease)
530 rpm
Reference Thermal Speed Rating (Oil)5
580 rpm
Cg - Geometry Factor6
0.1297
Dimensions
D - Outer Diameter
540 mm
B' - Inner Ring Width
192 mm
B - Outer Ring Width
192 mm
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius7
4 mm
r - Outer Ring "To Clear" Radius8
4 mm
da - Inner Ring Backing Diameter
351 mm
Da - Outer Ring Backing Diameter
482 mm
Basic Load Ratings
C0 - Static Radial Rating
6170000 N
C1(2) - Dynamic Radial Rating (Two-Rows)
4210000 N
