Timken 23264EJW525C08

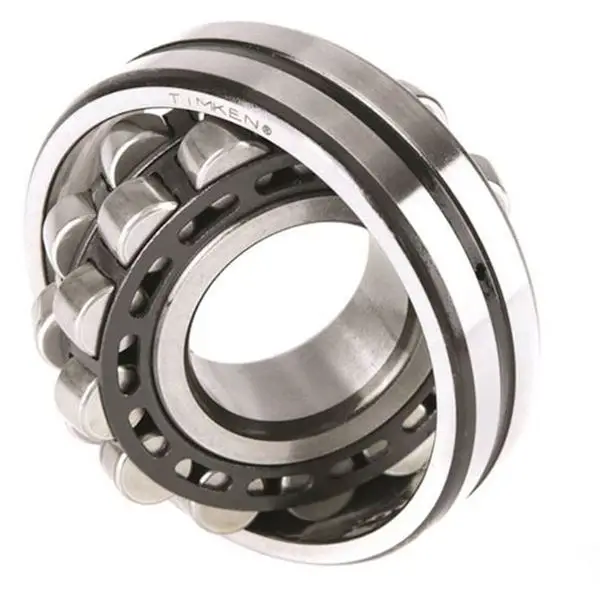

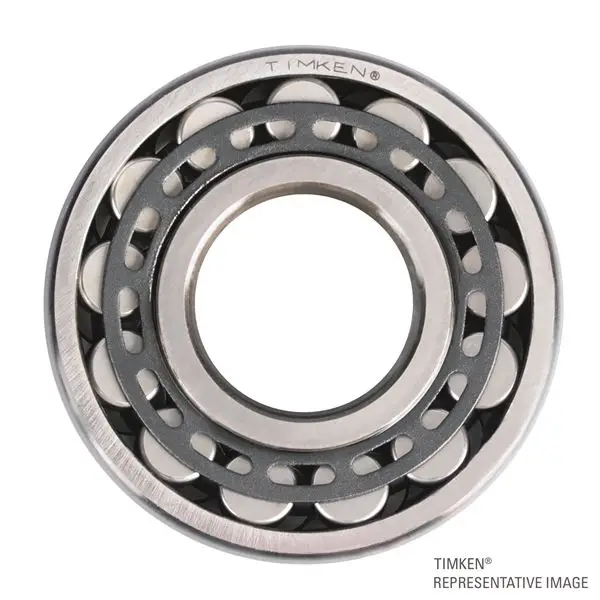

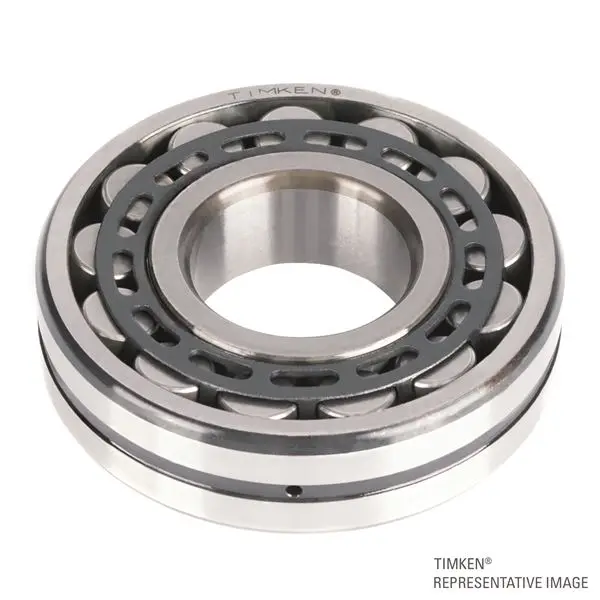

Spherical Roller Bearings - Steel Cage
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
UPC Code
087796193307
Design Unit
Metric
d - Bore
320.000 mm
Lubrication Type
Standard Grease
Cage Type
EJ
Cage Material
Steel
Superseded Part
23264CJW525C08
Factors
e - ISO Factor1
0.34
Y0 - ISO Factor2
1.93
Y1 - ISO Factor3
1.98
Y2 - ISO Factor4
2.94
Reference Thermal Speed Rating (Grease)
490 rpm
Reference Thermal Speed Rating (Oil)5
530 rpm
Cg - Geometry Factor6
0.1354
Dimensions
D - Outer Diameter
580 mm
B' - Inner Ring Width
208 mm
B - Outer Ring Width
208 mm
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius7
4 mm
r - Outer Ring "To Clear" Radius8
4 mm
da - Inner Ring Backing Diameter
377.000 mm
Da - Outer Ring Backing Diameter
516.000 mm
Basic Load Ratings
C0 - Static Radial Rating
7090000 N
C1(2) - Dynamic Radial Rating (Two-Rows)
4770000 N
