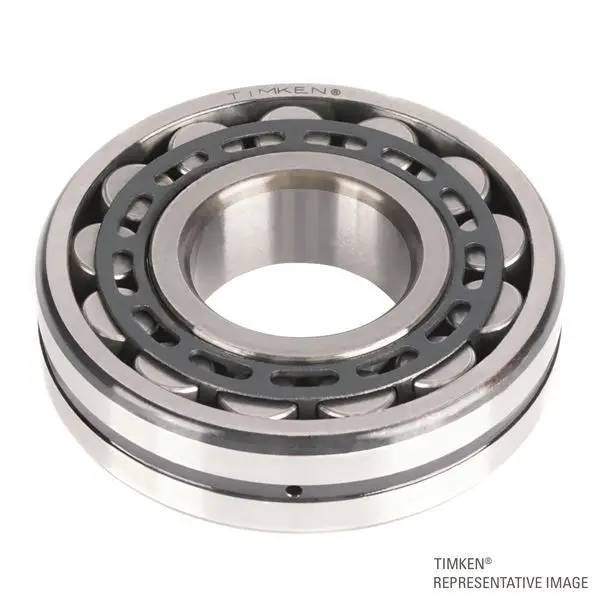

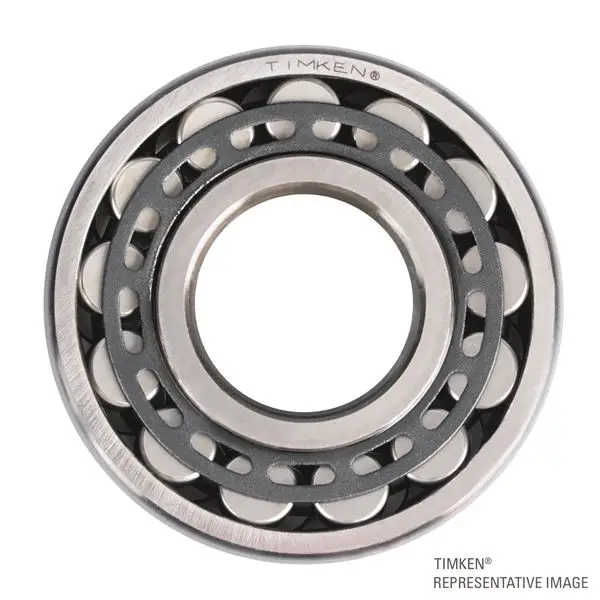

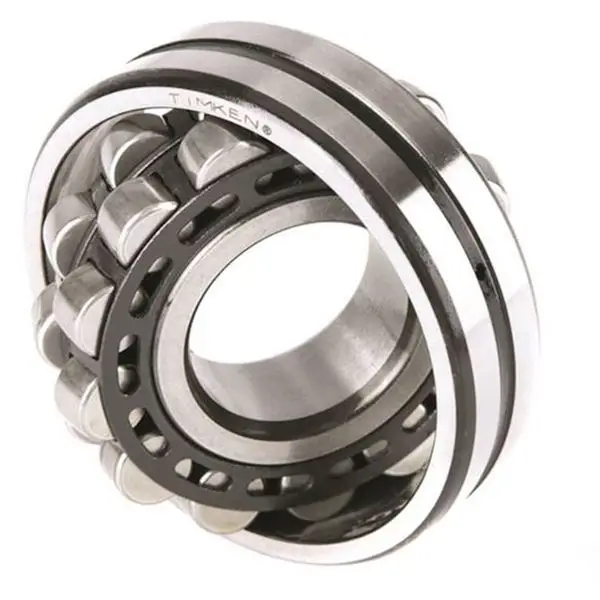

Timken 24156KEJW33W45AC4
Spherical Roller Bearings - Steel Cage
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
UPC Code
087796357716
Design Unit
Metric
d - Bore
280 mm
Lubrication Type
Standard Grease
Bore_Taper
1/30
Cage Type
EJ
Cage Material
Steel
Superseded Part
24156KCJW33W45AC4
Factors
e - ISO Factor1
0.36
Y0 - ISO Factor2
1.82
Y1 - ISO Factor3
1.86
Y2 - ISO Factor4
2.77
Reference Thermal Speed Rating (Grease)
510 rpm
Reference Thermal Speed Rating (Oil)5
540 rpm
Cg - Geometry Factor6
0.1207
Dimensions
D - Outer Diameter
460 mm
B' - Inner Ring Width
180 mm
B - Outer Ring Width
180 mm
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius7
4 mm
r - Outer Ring "To Clear" Radius8
4 mm
da - Inner Ring Backing Diameter
316.000 mm
Da - Outer Ring Backing Diameter
419 mm
Basic Load Ratings
C0 - Static Radial Rating
5060000 N
C1(2) - Dynamic Radial Rating (Two-Rows)
3210000 N
