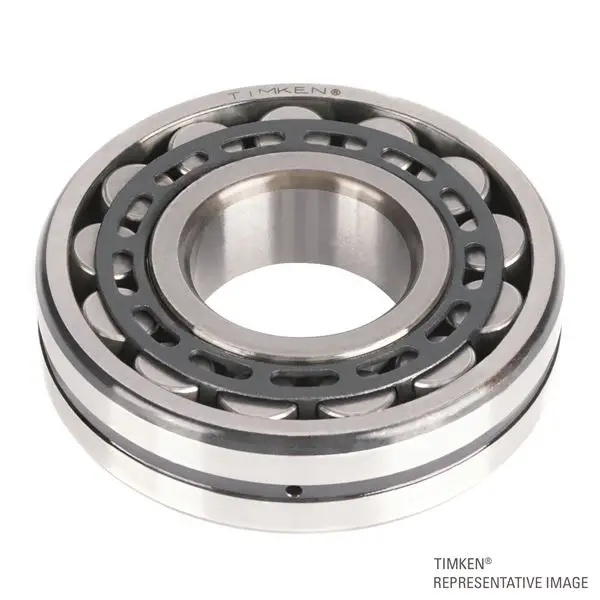

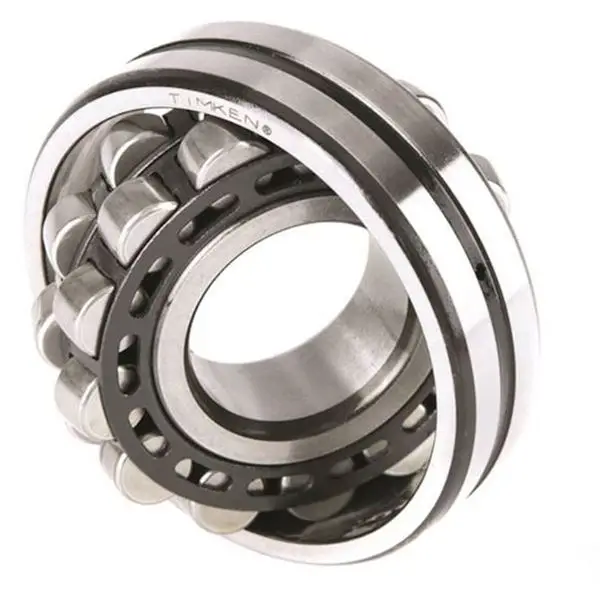

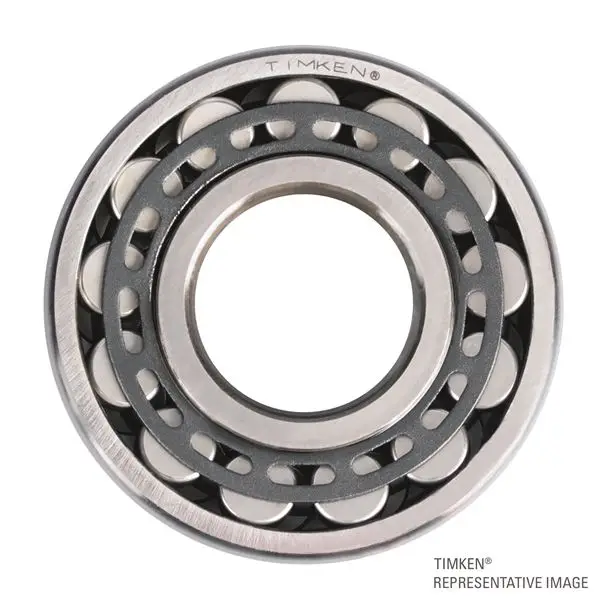

Timken 24160EJW33W45AC3
Spherical Roller Bearings - Steel Cage
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
UPC Code
087796357006
Design Unit
Metric
d - Bore
300 mm
Lubrication Type
Standard Grease
Cage Type
EJ
Cage Material
Steel
Superseded Part
24160CJW33W45AC3
Factors
e - ISO Factor1
0.37
Y0 - ISO Factor2
1.78
Y1 - ISO Factor3
1.82
Y2 - ISO Factor4
2.71
Reference Thermal Speed Rating (Grease)
440 rpm
Reference Thermal Speed Rating (Oil)5
470 rpm
Cg - Geometry Factor6
0.1252
Dimensions
D - Outer Diameter
500 mm
B' - Inner Ring Width
200 mm
B - Outer Ring Width
200 mm
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius7
4 mm
r - Outer Ring "To Clear" Radius8
4 mm
da - Inner Ring Backing Diameter
336.000 mm
Da - Outer Ring Backing Diameter
455 mm
Basic Load Ratings
C0 - Static Radial Rating
6270000 N
C1(2) - Dynamic Radial Rating (Two-Rows)
4060000 N
