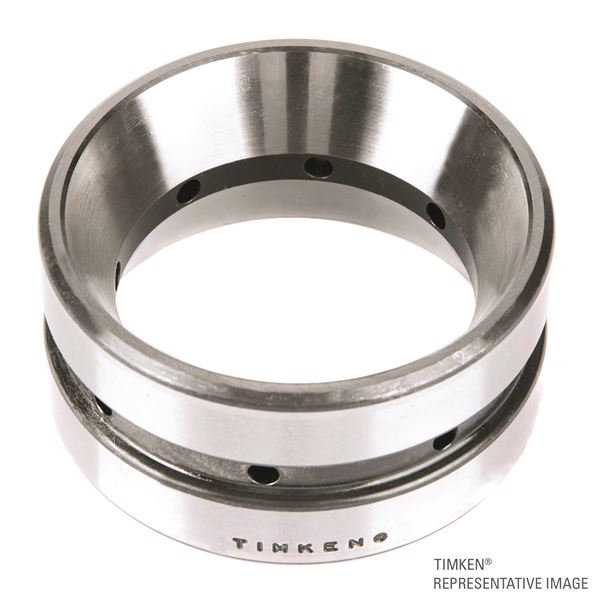

Timken 2523D
Tapered Roller Bearings - Double Tapered Cup - Imperial
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
2500
Cup Part Number
2523D
Design Units
Imperial
Dimensions
D - Cup Outer Diameter
69.850 mm
C - Double Cup Width
57.150 mm
Abutment and Fillet Dimensions
r - Cup Backface "To Clear" Radius1
0.8 mm
Da - Cup Frontface Backing Diameter
64.01 mm
Factors
K - Factor2
2.14
e - ISO Factor3
0.27
Y1 - ISO Factor4
2.47
Y2 - ISO Factor5
3.67
Cg - Geometry Factor6
0.0656
