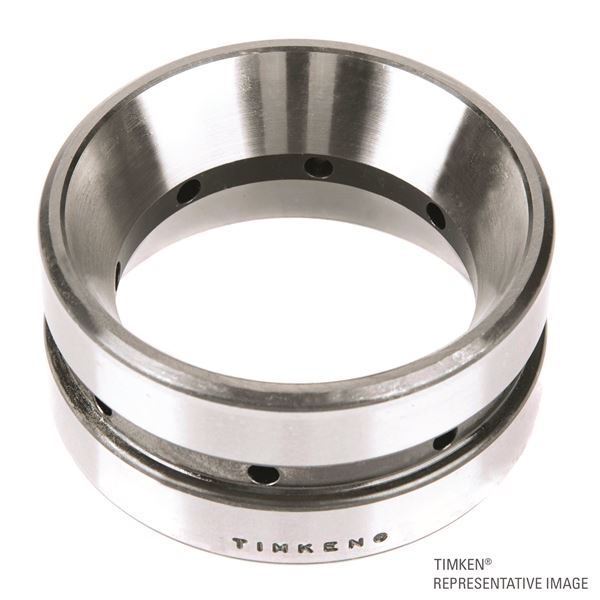

Timken 27620DA
Tapered Roller Bearings - Double Tapered Cup - Imperial
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
27600
Cup Part Number
27620DA
Design Units
Imperial
Dimensions
D - Cup Outer Diameter
125.413 mm
C - Double Cup Width
44.45 mm
Abutment and Fillet Dimensions
r - Cup Backface "To Clear" Radius1
0.8 mm
Factors
K - Factor2
1.4
e - ISO Factor3
0.42
Y1 - ISO Factor4
1.62
Y2 - ISO Factor5
2.42
G1 - Heat Generation Factor (Roller-Raceway)
98.2
G2 - Heat Generation Factor (Rib-Roller End)
41.8
Cg - Geometry Factor6
0.12
