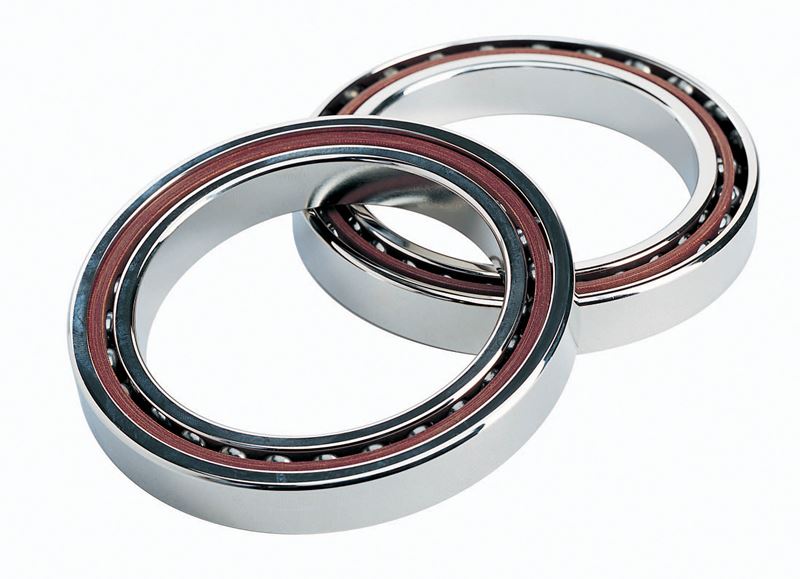

Timken 2MMV9117HXCRDUM
Fafnir® High Speed Spindle Angular Contact Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Rows per Set
Duplex
Seal Type
Standard
Design Units
Metric
d - Bore
85 mm
Ball Type
STEEL
Cage Type
CR - Phenolic Outer Land Riding Cage
Precision Rating
ISO P4S (ABEC 7/9)
Dimensions
D - Outer Diameter
130 mm
Bearing Width
22 mm
Total Width
44 mm
Contact Angle
15 º
Basic Load Ratings
C0 - Static Radial Rating (per row)
29000 N
Ce - Dynamic Radial Rating (per row)1
37100 N
C1 ISO - Dynamic Radial Rating (per row)
33700 N
Factors
Limiting Speed (Grease) (per row)
12600 rpm
Limiting Speed (Oil)
25200 rpm
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius2
1 mm
r - Outer Ring "To Clear" Radius3
1 mm
da - Inner Ring Backing Diameter
94.1 mm
Da - Outer Ring Backing Diameter
122.1 mm
