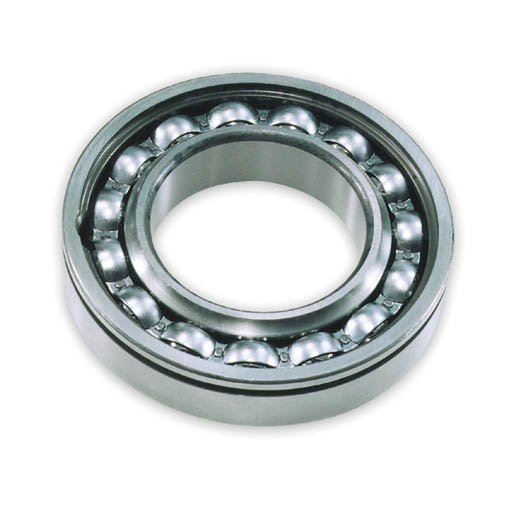

Timken 306W
Fafnir® Maximum Capacity Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Design Units
Metric
d - Bore
30 mm
Ball Type
STEEL
Dimensions
D - Outer Diameter
72 mm
Bearing Width
19 mm
Basic Load Ratings
Ce - Dynamic Radial Rating1
41991 N
C0 - Static Radial Rating
22597 N
Factors
Limiting Speed (Grease)
4900 rpm
Limiting Speed (Oil)
5880 rpm
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius2
1.1 mm
r - Outer Ring "To Clear" Radius3
1.1 mm
da - Inner Ring Backing Diameter
34.00 mm
Da - Outer Ring Backing Diameter
65.00 mm
