Timken 308KDG

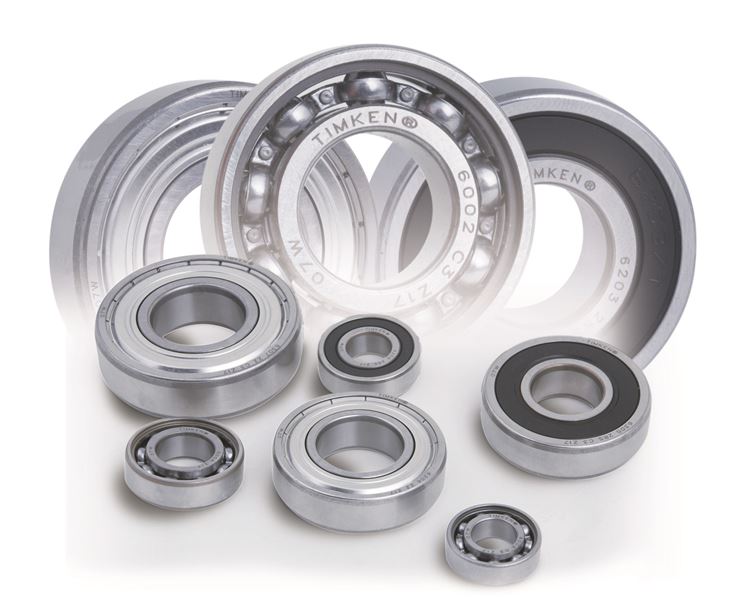

Fafnir® Deep Groove Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Design Units
Metric
d - Bore
40 mm
Ball Type
STEEL
Manufacturing Part Number
308KDGN Z6 FS50000
Dimensions
D - Outer Diameter
90 mm
Bearing Width
23 mm
Basic Load Ratings
Ce - Dynamic Radial Rating1
49200 N
C0 - Static Radial Rating
26000 N
Factors
Limiting Speed (Grease)
4615 rpm
Limiting Speed (Oil)
5385 rpm
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius2
1.5 mm
r - Outer Ring "To Clear" Radius3
1.5 mm
da - Inner Ring Backing Diameter
49.00 mm
Da - Outer Ring Backing Diameter
81.00 mm
