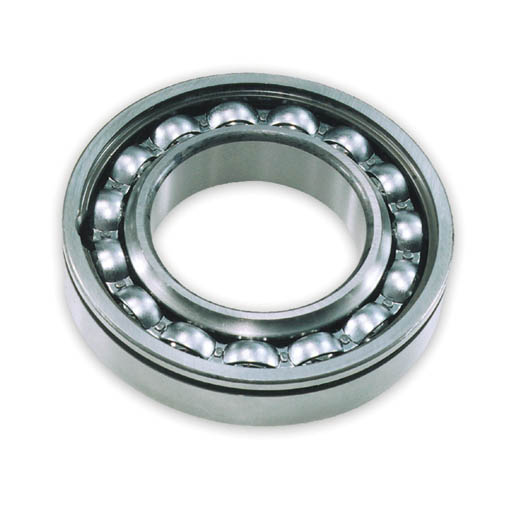

Timken 310WDDN
Fafnir® Maximum Capacity Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Design Units
Metric
d - Bore
50 mm
Ball Type
STEEL
Dimensions
D - Outer Diameter
110 mm
Bearing Width
27 mm
Basic Load Ratings
Ce - Dynamic Radial Rating1
89800 N
C0 - Static Radial Rating
56800 N
Factors
Limiting Speed (Grease)
3125 rpm
Limiting Speed (Oil)
3750 rpm
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius2
2 mm
r - Outer Ring "To Clear" Radius3
2 mm
da - Inner Ring Backing Diameter
59.90 mm
Da - Outer Ring Backing Diameter
100.10 mm
