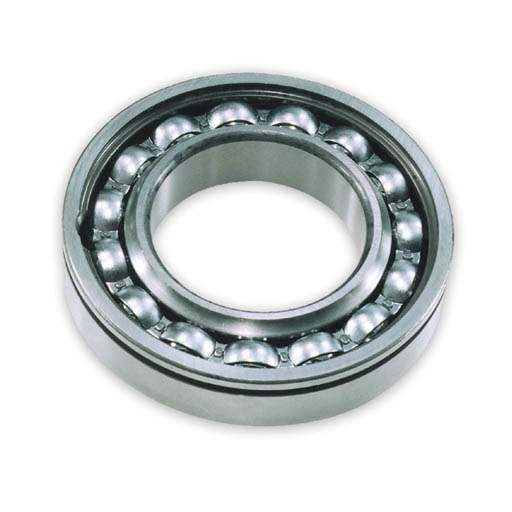

Timken 315W
Fafnir® Maximum Capacity Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Design Units
Metric
d - Bore
75 mm
Ball Type
STEEL
Dimensions
D - Outer Diameter
160 mm
Bearing Width
37 mm
Basic Load Ratings
Ce - Dynamic Radial Rating1
177039 N
C0 - Static Radial Rating
126774 N
Factors
Limiting Speed (Grease)
2130 rpm
Limiting Speed (Oil)
2550 rpm
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius2
2.11 mm
r - Outer Ring "To Clear" Radius3
2.11 mm
da - Inner Ring Backing Diameter
87.10 mm
Da - Outer Ring Backing Diameter
148.10 mm
