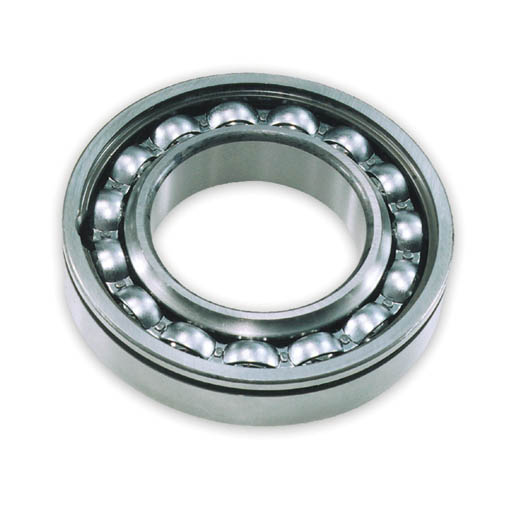

Timken 318W
Fafnir® Maximum Capacity Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Design Units
Metric
d - Bore
90 mm
Ball Type
STEEL
Dimensions
D - Outer Diameter
190 mm
Bearing Width
43 mm
Basic Load Ratings
Ce - Dynamic Radial Rating1
220632 N
C0 - Static Radial Rating
107202 N
Factors
Limiting Speed (Grease)
1790 rpm
Limiting Speed (Oil)
2140 rpm
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius2
3 mm
r - Outer Ring "To Clear" Radius3
3 mm
da - Inner Ring Backing Diameter
103.90 mm
Da - Outer Ring Backing Diameter
176.0 mm
