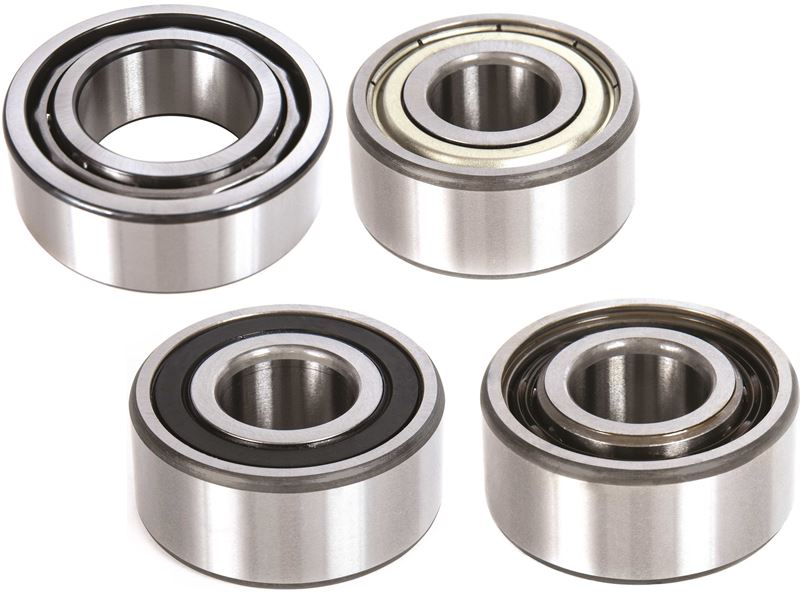

Timken 3305 ATN1/2RSC3
Timken® Double RowAngular Contact Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Design Units
Metric
d - Bore
25 mm
Features
Contact Seals
Ball Type
STEEL
Cage Type
Molded
Cage Material
Polyamide
Dimensions
D - Outer Diameter
62 mm
C - Ring Width
25.4 mm
Contact Angle
30 º
Basic Load Ratings
C0 - Static Radial Rating
19400 N
C1 ISO - Dynamic Radial Rating
28900 N
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius1
1.1 mm
r - Outer Ring "To Clear" Radius2
1.1 mm
da - Inner Ring Backing Diameter
32.0 mm
Da - Outer Ring Backing Diameter
55.0 mm
