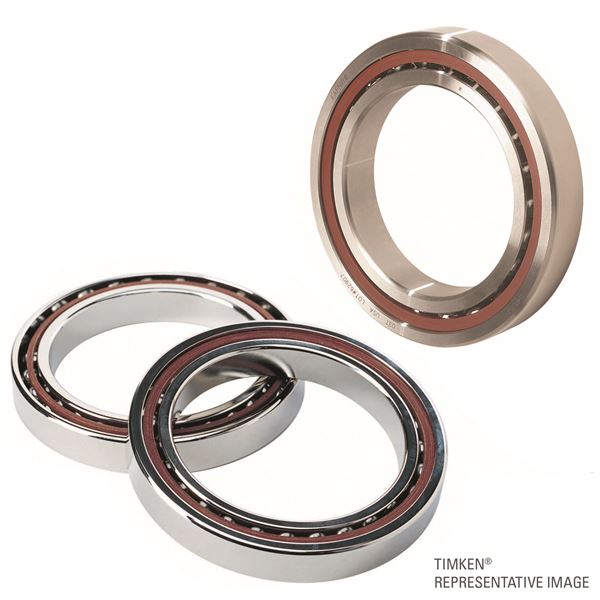

Timken 3MM9140WICRTUX
Fafnir® Spindle Angular Contact Ball Bearings (9300WI, 9100WI, 200WI, 300WI)
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Detailed data of
3MM9140WICRTUX
Specifications
Rows per Set
Triplex
Design Units
Metric
d - Bore
200 mm
Ball Type
STEEL
Cage Type
CR - Phenolic Outer Land Riding Cage
Precision Rating
ISO P4S (ABEC 7/9)
Manufacturing Part Number
3MM9140WI TUL
World Part Number
7040E-T-P4S-TUL
Dimensions
D - Outer Diameter
310 mm
Bearing Width
51 mm
Total Width
153 mm
Contact Angle
25 º
Basic Load Ratings
C0 - Static Radial Rating (per row)
321100 N
Ce - Dynamic Radial Rating (per row)1
281000 N
C1 ISO - Dynamic Radial Rating (per row)
255000 N
Factors
Limiting Speed (Grease) (per row)
3700 rpm
Limiting Speed (Oil)
7400 rpm
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius2
2 mm
r - Outer Ring "To Clear" Radius3
2 mm
da - Inner Ring Backing Diameter
221.6 mm
Da - Outer Ring Backing Diameter
289.2 mm
