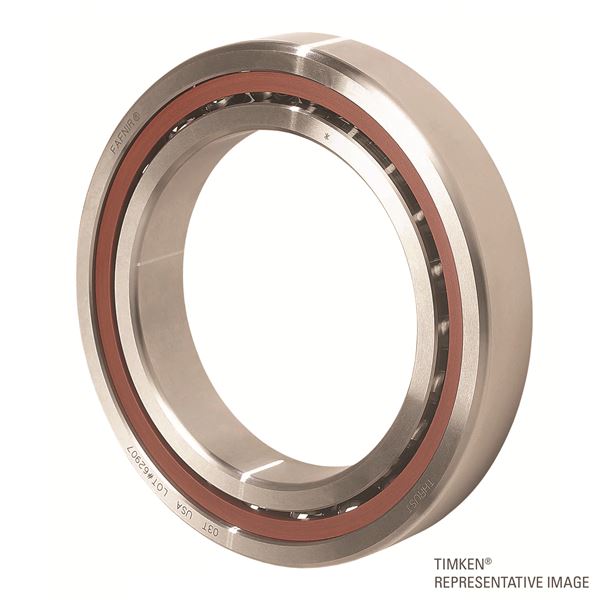

Timken 3MMV9314HXCRSUH
Fafnir® High Speed Spindle Angular Contact Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Rows per Set
Single
Seal Type
Standard
Design Units
Metric
d - Bore
70 mm
Ball Type
STEEL
Cage Type
CR - Phenolic Outer Land Riding Cage
Dimensions
D - Outer Diameter
100 mm
Bearing Width
16 mm
Total Width
16 mm
Contact Angle
25 º
Basic Load Ratings
C0 - Static Radial Rating (per row)
13922 N
Ce - Dynamic Radial Rating (per row)1
20105 N
C1 ISO - Dynamic Radial Rating (per row)
19100 N
Factors
Limiting Speed (Grease) (per row)
14800 rpm
Limiting Speed (Oil)
29600 rpm
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius2
1 mm
r - Outer Ring "To Clear" Radius3
1 mm
da - Inner Ring Backing Diameter
76.3 mm
Da - Outer Ring Backing Diameter
94.3 mm
